The single biggest factor in whether a sliding barn door glides silently or rattles and jumps isn’t the door itself — it’s the hardware carrying it. A quality barn door track and rollers system is what turns a heavy wooden slab into a door that moves with a fingertip push, while cheap hardware turns the same door into a noisy, sticking frustration. Because the track and rollers are on full display in most installations, they’re also a design element in their own right, from matte-black industrial to sleek stainless. Getting the specs right the first time saves you from a door that binds, sags, or wears out its wheels within a year.
This guide covers how the system works, how to size the track, the roller styles worth knowing, weight ratings, and the installation details that separate a smooth-sliding door from a troublesome one.
How a Barn Door Track System Works

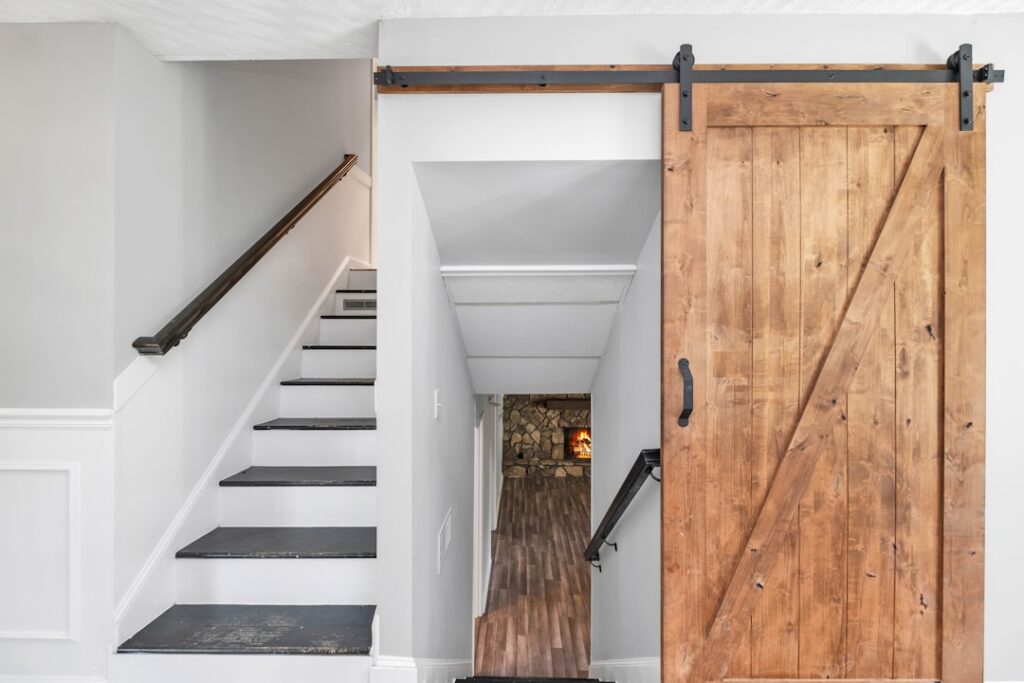

A sliding barn door hangs from two roller hangers that ride along a horizontal rail mounted above the opening. Gravity does the work — the door’s full weight bears down on the rollers, which spin along the track as you slide it open and closed. A floor guide at the bottom keeps the door from swinging away from the wall, and door stops at each end of the track prevent it from rolling off. Because the whole assembly hangs from the wall or header above the opening, the structural connection behind that mounting point is critical.
Unlike a swinging door on hinges, a barn door needs open wall space beside the opening for the door to slide into. The track must extend at least the full width of the door beyond the opening so the door clears completely when open.
Sizing the Track Correctly
Track length is the number people most often get wrong. The rule is simple but essential: the track should be roughly twice the width of the door opening. That gives the door somewhere to go when it slides fully open, exposing the entire doorway.
- For a 36-inch opening, you want a door about 38 to 40 inches wide (to overlap the opening) and a track around 72 to 80 inches long.
- For a double-door setup, two doors meet in the middle and each slides to its own side, requiring a track that spans well beyond both openings.
- Check the mounting surface: The track needs solid backing — studs, a header, or a mounted backer board — along its entire length, not just at the opening.
The door itself should overlap the opening by an inch or more on each side and top to block light gaps and give privacy, which is why barn doors are always wider and taller than the opening they cover.
Understanding Roller Styles
Rollers, sometimes called hangers, are where quality really shows. The wheel material and bearing design determine how quietly and smoothly the door moves and how long the hardware lasts.
Wheel Design and Shape
Most rollers use one of a few wheel profiles. A grooved or flanged wheel captures the track edge to keep the door tracking straight, while a flat wheel rides on top of a round rail. Nylon or delrin wheels run more quietly than bare steel and won’t scratch the track, though premium steel wheels with sealed bearings offer the smoothest, longest-lasting glide. Sealed ball bearings inside the wheel hub are the mark of good hardware — they spin freely and resist the grit that makes cheap rollers grind and squeal.
Hanger Strap Styles
The strap is the visible bracket connecting the wheel to the door, and it’s largely a style choice: straight (I-shaped) straps read modern and minimal, while classic bent-top (J-shaped) straps give the traditional barn look. Both mount to the door face with lag bolts, and the strap style should match the aesthetic you’re after.
Weight Ratings Matter
Every track-and-roller kit carries a weight rating, and matching it to your door is non-negotiable. A solid-core wood or glass barn door can weigh 80 to well over 150 pounds, and undersized hardware will sag, wear prematurely, or fail. Weigh your door or estimate from its material and dimensions, then choose a kit rated comfortably above that — most residential kits handle 200 pounds, but heavy solid-wood or double doors may call for a heavier-duty system.
Don’t forget the mounting hardware behind the track. The lag bolts must reach solid framing; anchoring into drywall alone will pull out under the door’s weight. If your studs don’t line up with the track, mount the track to a hardwood backer board that spans and fastens into multiple studs.
Installing the Track and Rollers
A barn door install is achievable for a confident DIYer in a few hours, but precision at a couple of steps makes all the difference.
- Mark a level line. The track must be perfectly level, or the door will roll open or closed on its own. Measure the mounting height so the door clears the floor by about half an inch.
- Locate solid backing. Find studs or mount a backer board, and predrill for the lag bolts to prevent splitting.
- Attach the track. Bolt it up tight, checking level again once fastened. Add the end stops.
- Mount the rollers to the door, spacing them per the template so they align with the track and clear the door edges.
- Hang the door by lifting it onto the track, then install the floor guide at the bottom to keep it from swinging.
- Test and adjust. Slide it fully both ways, confirm smooth motion, and tweak the anti-jump discs and floor guide so nothing rubs.
Common Problems and Fixes
Most barn door complaints trace back to hardware or installation, and nearly all are fixable.
- Door rolls on its own: The track isn’t level. Re-shim or remount so it reads perfectly horizontal.
- Squeaking or grinding: Grit in the wheels or dry bearings. Clean the track and, if the rollers have sealed bearings, no lubricant is needed; open bearings can take a light dry lubricant.
- Door jumps off the track: Install or adjust the anti-jump pads that keep the rollers seated.
- Door swings away from the wall: The floor guide is missing or set too loose. Reposition it snug against the door bottom.
Finish Options and Style
Because the track and rollers hang in full view above the door, their finish is as much a design decision as a functional one. Matte black is the runaway favorite, reading equally at home in modern, industrial, and farmhouse spaces and pairing with almost any door color. Oil-rubbed bronze and antique-bronze finishes lean traditional and warm, complementing stained wood doors and brass or bronze fixtures elsewhere in the room. Stainless and brushed-nickel hardware suits contemporary and transitional interiors, giving a cleaner, more understated look.
Coordinate the hardware finish with the door pull, floor guide, and nearby fixtures so the installation reads as intentional rather than assembled from mismatched parts. If your room already leans toward a particular metal — cabinet hardware, light fixtures, door levers — echoing it in the barn door track ties everything together. Keep in mind that a heavily textured or powder-coated finish resists fingerprints and minor scratches better than a polished one, a small practical edge in a high-touch spot.
Floor Guides and Anti-Jump Hardware
Two small components do outsized work in keeping a barn door behaving properly, and they’re easy to overlook. The floor guide anchors the bottom of the door so it can’t swing away from the wall or bang against the trim as it slides. Guides come in a few styles: a T-shaped guide that rides in a groove routed into the door’s bottom edge, an adjustable wall-mounted guide with rollers that hug both faces of the door, and a floor-mounted pin. The groove-style guide is the most discreet but requires routing the door; wall-mounted guides are easier to retrofit.
Anti-jump discs or pads are equally important. These small stops mount on the track above the rollers to prevent the door from bouncing up and off the rail if it’s slid hard or bumped. Without them, a firmly closed door can hop the track — a startling and potentially damaging event with a heavy slab. Most quality kits include both the floor guide and anti-jump hardware, but budget sets sometimes omit them, so confirm they’re in the box. Installing and adjusting these two pieces correctly is what makes the door feel solid and controlled rather than loose and rattly.
Choosing Quality Hardware
When you shop, prioritize sealed bearings, a weight rating with margin to spare, and a finish that suits your room. A complete kit typically includes the track, two rollers, end stops, anti-jump pads, a floor guide, and the mounting hardware — buying a matched set avoids the compatibility headaches of piecing parts together. Expect to pay $40 to $150 for a solid residential kit, with heavier-duty and designer finishes costing more.
The door may be the star of a barn-door installation, but the barn door track and rollers are what make it work day after day. Size the track to twice the opening, match the rollers’ rating to your door’s weight, anchor into real framing, and hang it dead level — do those four things and you’ll have a sliding door that glides smoothly and quietly for years.
