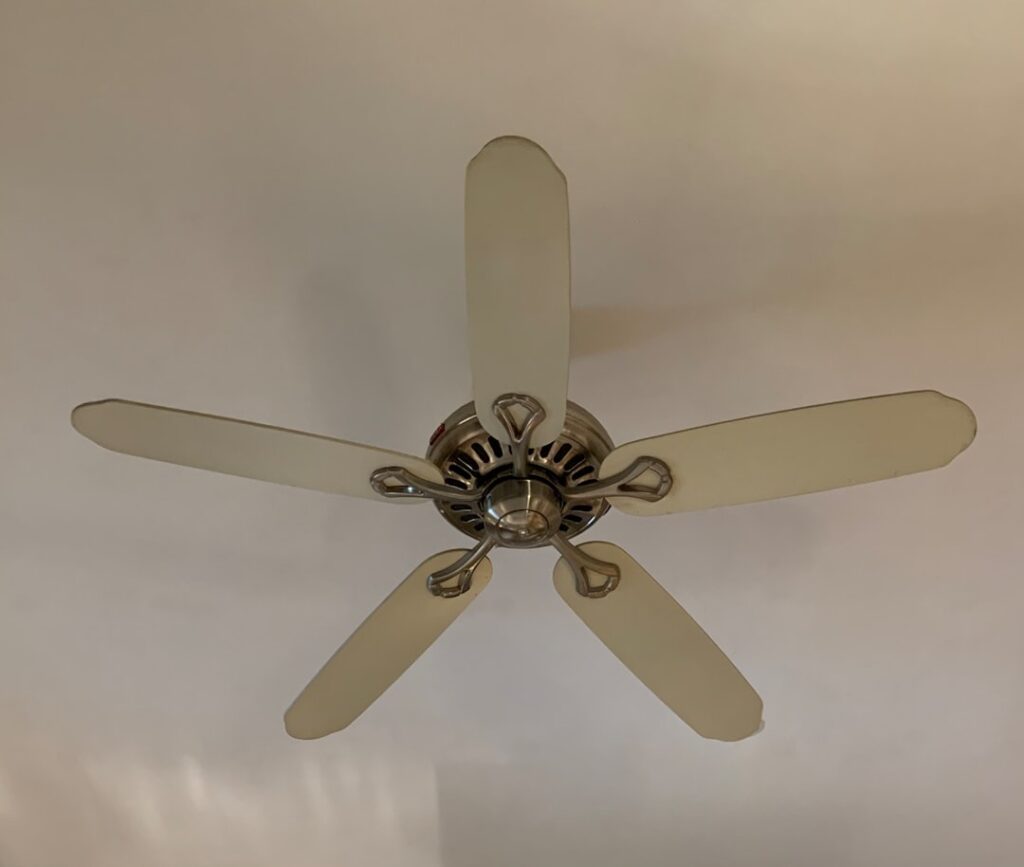

When a ceiling fan pull chain snaps, the frustrating part is that the chain itself is rarely the real problem. If your ceiling fan pull chain broke and the little beaded cord came out in your hand, you are dealing with one of two things: either just the chain broke off but the switch still works, or the internal switch failed and jammed, taking the chain with it. Knowing which one you have determines whether this is a five-minute fix or a $10 switch replacement. Either repair is well within DIY reach with basic tools, and it beats replacing an otherwise good fan. This guide shows you how to tell the two apart and walks through both fixes step by step.
First, Figure Out What Actually Broke
Pull gently on whatever chain remains, or look up into the switch housing. There are two scenarios:
- The chain broke but the switch is intact: The bead chain snapped, leaving a stub of the switch’s little shaft or a broken chain hanging. If you can grab the remaining shaft with pliers and click through the fan’s speeds, the switch works fine and you only need to reattach or replace the chain.
- The switch itself failed: The chain pulled all the way out, feels jammed, or clicks with no change in fan speed. Internal switches wear out after thousands of pulls, and often the chain breaks because the mechanism seized. In this case you replace the whole pull-chain switch.
Test by carefully operating the remaining shaft with needle-nose pliers while the fan has power. If the fan cycles through its speeds, it is a chain problem. If nothing happens, it is a switch problem.
Safety First: Cut the Power
For anything beyond gently pulling a stub, turn off the power at the breaker, not just the wall switch. Ceiling fans carry line voltage, and you will be touching wires when replacing the switch. Flip the breaker for that circuit, then confirm the fan is dead by trying the wall switch and, ideally, testing with a non-contact voltage tester at the fan. Let a hot fan blade coast to a stop before working near it, and use a stable ladder rather than a wobbly chair.
Fix 1: The Chain Broke but the Switch Works
This is the easy case. You are just restoring a way to pull the switch.
- Quick fix: If a stub of chain or the switch shaft remains, buy a bead-chain connector and a length of replacement pull chain (a repair kit is about $5 at any hardware store) and attach the new chain to the stub with the connector coupling.
- If the chain broke flush with the housing, you may be able to open the switch housing and reattach a new chain to the switch’s ball-chain loop, but if the chain broke off inside the switch, treat it as a switch replacement (Fix 2).
- Add a chain pull or a longer decorative extension so it is easier to grab and puts less strain on the switch next time.
No-power needed for a simple external chain reattachment, but if you open the housing, cut the breaker first.
Fix 2: Replacing the Pull-Chain Switch
When the switch is toast, a new one costs $5 to $12 and takes about 30 minutes. Buy a replacement matched to your fan; note the number of speeds (usually 3-speed) and the wire count.
- Kill the breaker and confirm the fan is dead with a voltage tester.
- Remove the switch housing cover. This is the cap on the bottom of the fan (the light-kit cap or the small switch housing). Remove the two or three screws holding it.
- Locate the old switch. It is a small box with the chain and several wires, held by a small hex nut around its threaded shaft.
- Photograph the wiring before touching anything, so you can match colors exactly. Note where each wire connects.
- Count the wires. Most fan switches have 3 or 4 wires (often labeled L, 1, 2, 3). Buy a switch with the same number and configuration.
- Disconnect the old switch. Cut or unscrew the wire connections, or unsolder if soldered, and unthread the retaining nut to drop the switch out.
- Wire in the new switch matching your photo, connecting each wire to the same terminal position. Use wire nuts or the crimp connectors provided.
- Mount the new switch through the housing hole, tighten the nut so the chain hangs out, and tuck the wires back in.
- Reattach the cover, restore power, and test all fan speeds.
Matching the Right Replacement Switch
The most common mistake is buying the wrong switch. Fan pull-chain switches vary by:
- Number of speeds: Most are 3-speed (high-medium-low-off), but some are 4-position.
- Wire count: 3-wire and 4-wire versions are the usual types; count yours before buying.
- Terminal labeling: Switches are marked L (line/hot in) and numbered outputs. Matching the labeling to your fan’s wiring diagram guarantees correct speed sequencing.
If you cannot find the fan’s model, take the old switch to the hardware store and match it physically. A mismatched switch may run only some speeds or reverse the order.
When to Consider a Different Fix
If your fan is old and the switch keeps failing, or you are tired of chains altogether, consider two upgrades. A pull-chain-to-remote conversion kit (around $20 to $40) installs in the canopy and lets you control speed and light by remote, retiring the chain entirely. Alternatively, a wall-mounted fan control replaces the chain function at the switch box. And if the fan is decades old, wobbles, and the motor hums, replacing the whole fixture ($60 to $200) may make more sense than chasing repairs.
Tools and Parts You’ll Need
This is a low-cost repair with a short tool list. For a simple chain reattachment, all you need is a bead-chain repair kit (about $5) that includes replacement chain and a connector coupling, plus a pair of needle-nose pliers. For a switch replacement, gather a matching pull-chain switch ($5 to $12), a Phillips screwdriver, wire strippers, a few wire nuts or the crimp connectors that come with the switch, a non-contact voltage tester ($15 to $25 and worth owning), and a stable step ladder. A smartphone to photograph the wiring before you disconnect anything is the most valuable “tool” of all, since it turns rewiring into a simple color-match instead of a guessing game.
Frequently Asked Questions
Can I fix a ceiling fan pull chain myself?
Yes. Reattaching a broken chain with a bead-chain connector kit is a five-minute job, and replacing the internal pull-chain switch takes about 30 minutes with a screwdriver and wire connectors. Always cut power at the breaker before opening the switch housing.
Why does my ceiling fan chain keep breaking?
Usually the internal switch is worn or seizing, which strains and snaps the chain. Repeated hard pulls also fatigue the bead chain. If a new chain breaks again quickly, replace the switch rather than just the chain.
How much does it cost to replace a fan pull-chain switch?
The switch itself runs $5 to $12, and a chain repair kit is about $5. If you hire an electrician, expect $75 to $150 in labor, which is why this is a popular DIY fix.
How do I know which pull-chain switch to buy?
Match the number of speeds (usually 3-speed) and the wire count (commonly 3 or 4 wires) to your existing switch. Take the old switch to the store to compare, and photograph the wiring before disconnecting so you can rewire the new one identically.
A broken ceiling fan pull chain is one of the most fixable problems in the house. Diagnose whether the chain or the switch failed, cut the power before opening anything, and either reconnect the chain with a $5 kit or swap in a matched $10 switch. Either way you keep a good fan running for a fraction of replacement cost, and if the chains keep failing, a remote conversion kit ends the problem for good.
