Tate Raised Access Flooring: Pros, Cons, and Buying Guide

If you have ever walked across a data center, a modern open-plan office, or a trading floor and felt a subtle hollowness underfoot, you were almost certainly standing on an access floor. Tate raised access flooring is one of the most recognized names in that world, a system of removable panels sitting on adjustable pedestals that creates a hidden service cavity beneath the finished floor. It is a different animal from residential flooring, and knowing how it works will help you decide whether it belongs in your project.

Tate, part of the Kingspan group, has manufactured access floor systems for decades. The concept is deceptively simple, but the engineering and the payoff are substantial for the right building.

How a Raised Access Floor System Works

The heart of the system is a grid of 24-inch by 24-inch panels resting on steel pedestals that adjust in height. That creates an accessible plenum, a void beneath the walkable surface, that typically ranges from 6 inches to 24 inches or more. Everything that would otherwise be buried in walls or ceilings routes through that cavity: power cabling, data and network lines, and in many designs, the building’s air conditioning.

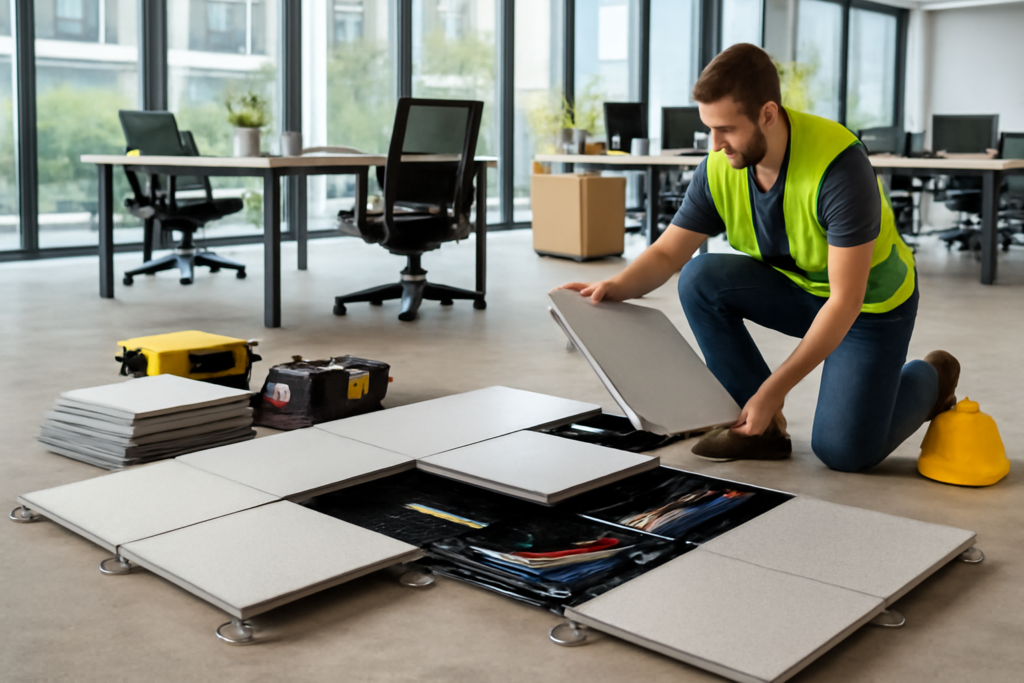

Panels lift out with a simple suction cup, so an electrician or IT technician can reconfigure an entire floor’s wiring in hours rather than tearing into drywall. Tate manufactures several panel types, including bare steel-encased concrete-filled panels, ConCore panels for high loads, and all-steel welded panels for the heaviest data center racks. Finishes range from high-pressure laminate to bare panels ready for carpet tile, vinyl, or stone.

Where Tate Access Flooring Makes Sense

These systems earn their keep anywhere the space beneath the floor needs to be worked on repeatedly. Data centers are the classic case, where cold air is pushed up through perforated panels to cool server racks and where cabling changes constantly. Corporate offices use them so that every desk reconfiguration does not require an electrician to open the ceiling below. Laboratories, broadcast studios, and financial trading floors all rely on the flexibility.

The common thread is change. If a building’s technology and layout will evolve over its life, a raised floor pays back the upfront cost by making every future change cheap and fast. In a static space that will never move a wall or a workstation, that value largely disappears.

The Pros: Why Facilities Managers Choose It

Flexibility is the headline advantage. When the entire electrical and data infrastructure lives in an accessible cavity, reconfiguring a floor plate becomes a maintenance task instead of a construction project. That translates to real dollars saved over a 20 or 30 year building life.

Underfloor air distribution is the second major benefit. Pushing conditioned air up from the floor, rather than down from the ceiling, can be more energy-efficient because you only condition the occupied zone near people rather than the whole volume of the room. Cable management is cleaner and safer too, with no cords snaking across walkways. And Tate panels carry serious load ratings, with concentrated load capacities commonly from 1,250 up to 2,500 pounds depending on the panel, comfortably supporting heavy server racks and equipment.

The Cons and Real-World Tradeoffs

Cost is the first hurdle. A raised access floor is not cheap. Installed, systems commonly run $15 to $35 per square foot or more once you factor in panels, pedestals, and the finish surface. That is a significant premium over simply carpeting a slab, and it only makes financial sense when the flexibility is genuinely needed.

Ceiling height is the other tradeoff. Raising the floor 8 to 18 inches eats into a room’s clear height, which matters in retrofits of older buildings with modest floor-to-slab dimensions. There is also a maintenance dimension. Panels can develop movement or a subtle rattle over time, ramps and transitions are needed at doorways, and the void must be kept clean because it often serves as an air pathway. None of these are dealbreakers, but they are real considerations that a residential floor never presents.

Choosing the Right Panel and Height

Specifying a Tate raised access flooring system starts with load. Match the panel rating to the heaviest equipment the floor will ever carry, and remember that data center rows loaded with dense server racks demand the high-capacity ConCore or all-steel panels rather than standard office-grade panels. Underrating the panel is a costly mistake to correct after installation.

Next comes cavity height, driven by what has to fit underneath. A simple cable-management office might only need 6 to 8 inches, while an underfloor air system serving a data center could call for 18 to 36 inches. Finally, decide the finish. Many offices lay carpet tile directly on the panels so it can be swapped as it wears, while cleaner environments use factory-laminated or vinyl-faced panels.

Installation and Working With a Contractor

This is not a DIY product. Proper installation requires laser-leveling the pedestal grid, securing them to the slab with adhesive, and ensuring every panel seats flush so the finished floor is dead flat and rattle-free. Tate works through a network of certified installers, and I strongly recommend using one, because a poorly installed access floor telegraphs every flaw through movement and noise for the life of the building.

Expect the crew to coordinate closely with the electrical, mechanical, and IT trades, since the whole point of the floor is to house their systems. Good projects sequence the trades so cabling and air handling are roughed in as the floor goes down.

Panel Finishes and Floor Coverings

One point that trips up first-time buyers is the difference between the structural panel and the finished surface you actually walk on. Tate offers panels with factory-bonded finishes such as high-pressure laminate or vinyl, which arrive ready to use, and bare panels meant to receive a separate floor covering after installation. In most corporate offices the covering of choice is modular carpet tile, precisely because it can be lifted and replaced in the same spirit as the access panels themselves.

Cleaner and higher-spec environments often use static-dissipative vinyl or laminate finishes, which matter enormously in data centers where a static discharge can damage electronics. If you are specifying a floor for a lab, a clean room, or a server hall, the finish is not merely cosmetic; it is part of the building’s electrical safety strategy, and it should be chosen with the equipment in mind.

Maintenance and Long-Term Ownership

A well-installed access floor is remarkably low-maintenance, but it is not zero-maintenance. The plenum below should be inspected and kept clean, especially in underfloor air systems where dust accumulation degrades air quality and cooling performance. Panels that begin to rock or rattle usually just need their pedestals re-leveled, a quick fix if caught early and an annoyance if ignored.

When it comes time to reconfigure, the whole value proposition pays off. Lifting a panel to run a new data drop or relocate a power whip takes minutes, and the panel drops right back into place. Over a 20 or 30 year building life, that ease of change is what justifies the higher upfront cost, turning what would be disruptive construction projects into routine facilities work handled without downtime.

Is a Raised Access Floor Worth It?

For the right building, absolutely. If your space houses evolving technology, needs efficient underfloor cooling, or will be reconfigured repeatedly over its life, a Tate raised access flooring system pays for itself through years of easy, low-cost changes. For a static office or a home, it is overkill you do not need. Match the system to the way the space will actually be used, and it becomes one of the smartest infrastructure investments a commercial building can make.
