Choosing the wrong waterproof underlayment can ruin an expensive flooring installation within months. We have seen it happen too many times: beautiful hardwood buckling over a concrete slab because nobody installed a proper moisture barrier, or laminate planks swelling at the seams because the underlayment lacked vapor protection. This guide covers every type of waterproof underlayment available, when each one is needed, and how to match it to your specific flooring and subfloor combination.
Why You Need Waterproof Underlayment
Moisture is the number one enemy of flooring installations. It attacks from two directions: above the floor through spills and humidity, and below the floor through concrete moisture vapor transmission and ground moisture migration. Waterproof underlayment addresses the threat from below.
Concrete slabs continuously emit moisture vapor, even decades after they were poured. This vapor passes upward through the slab and into your flooring material. Without a barrier, that moisture causes hardwood to cup and warp, laminate cores to swell, and mold to grow between the subfloor and your finished floor.
Wood subfloors over crawl spaces face similar issues. Ground moisture rises through the crawl space, passes through the plywood, and reaches your flooring. Seasonal humidity changes make this worse, creating a cycle of moisture absorption and release that stresses flooring materials.
A quality waterproof underlayment blocks this moisture transmission while also providing sound dampening, thermal insulation, and a smooth installation surface. It is one of the least expensive components of a flooring project, yet skipping it or choosing the wrong type causes the most expensive failures.
Types of Waterproof Underlayment
The market offers several categories of waterproof underlayment, each with distinct properties and best-use applications.
6-mil polyethylene sheeting is the most basic and affordable option. This thin plastic film serves purely as a vapor barrier with no cushioning or sound-dampening properties. It costs $0.05 to $0.15 per square foot and works as a standalone vapor barrier under a separate cushioning underlayment. Many flooring manufacturers require it over concrete slabs as a minimum moisture protection measure.
Foam underlayment with integrated vapor barrier combines cushioning and moisture protection in a single product. These rolls feature a closed-cell foam layer (typically 1.5mm to 3mm thick) bonded to a polyethylene or polypropylene film. Products like QuietWalk, Floor Muffler, and Roberts Super Felt fall into this category. Prices range from $0.25 to $0.75 per square foot. This is the most popular choice for laminate and engineered hardwood installations over concrete.
Cork underlayment with moisture barrier provides superior sound absorption and thermal insulation. Cork naturally resists mold and mildew, making it an excellent choice for moisture-prone areas. Products like QEP Natural Cork and AcoustiCork offer 3mm to 6mm thicknesses. At $0.50 to $1.50 per square foot, cork is the premium option, but its acoustic performance justifies the cost in condominiums and multi-story buildings.
Rubber underlayment delivers the best impact sound reduction (IIC ratings). Products like QuietWalk Plus and Proflex 90 use recycled rubber combined with moisture barrier films. These run $0.60 to $1.25 per square foot and excel under hardwood and laminate in apartments and condos where sound transmission requirements are strict.
Self-adhering membrane underlayment products like Schluter DITRA provide waterproofing plus uncoupling for tile installations. These are specialty products designed specifically for tile and stone, preventing crack transmission from the subfloor to the finished floor. Expect to pay $1.00 to $2.50 per square foot.
When Waterproof Underlayment Is Required
Not every flooring installation needs waterproof underlayment, but more situations require it than most people realize.
Always required: Any floating floor installation over a concrete slab, regardless of the slab’s age or grade level. This includes basements, slab-on-grade main floors, and any concrete surface. The concrete does not need to feel wet or test high for moisture. Vapor transmission is invisible and constant.
Always required: Any flooring installation over a crawl space, even if the crawl space has a vapor barrier on the ground. The double protection is necessary because crawl space barriers degrade over time and rarely achieve perfect coverage.
Strongly recommended: Floating floor installations on second floors and above where sound transmission to the floor below is a concern. Most condo and apartment associations mandate specific underlayment with minimum STC and IIC ratings.
Not typically required: Nail-down or glue-down hardwood installations over plywood subfloors on upper levels. The adhesive or mechanical fastening, combined with the plywood substrate, usually provides adequate performance. However, some manufacturers still recommend a vapor retarder in humid climates.
Not required: LVP and vinyl flooring with factory-attached backing over plywood subfloors. Adding a second underlayment under these products actually causes problems by creating too much cushion, which stresses the locking system.
Best Underlayment for Each Floor Type
Matching your waterproof underlayment to your flooring type is critical. Using the wrong combination voids warranties and causes performance issues.
Laminate flooring: Foam with integrated vapor barrier is the standard choice. QuietWalk is our top recommendation for its combination of moisture protection, sound dampening, and consistent thickness. For budget projects, a basic 2mm foam with poly film works fine. Never use cork thicker than 3mm under laminate, as excess cushion causes the click locks to fail.
Engineered hardwood (floating): Cork underlayment provides the best results, offering superior sound performance and the natural antimicrobial properties that protect the wood from below. For concrete subfloors, choose cork with an attached vapor barrier or lay 6-mil poly underneath the cork.
Solid hardwood (floating, rare): Rubber underlayment with vapor barrier gives the mass and rigidity that solid hardwood needs. Most solid hardwood is nailed down, making traditional underlayment unnecessary.
Luxury vinyl plank: Only use underlayment if the product does not have an attached pad. If underlayment is needed, choose a thin (1.5mm maximum) closed-cell foam designed specifically for rigid-core LVP. Thick, soft underlayments cause LVP joints to separate. Always check the manufacturer’s specifications.
Tile and stone: Self-adhering uncoupling membranes like DITRA or Peel-and-Stick waterproofing membranes are the appropriate choice. Standard foam or cork underlayments are never appropriate under tile.
Installation Guide
Proper installation of waterproof underlayment is straightforward but requires attention to a few important details.
Subfloor preparation: Sweep and vacuum the subfloor thoroughly. Remove any debris, nails, screws, or high spots that could puncture the underlayment. For concrete, grind down any ridges or bumps. The surface should be clean, dry, and flat to within 3/16 inch over 10 feet.
Moisture testing: Before installing any waterproof underlayment over concrete, test the moisture level. Use a calcium chloride test kit (ASTM F1869) or a relative humidity probe (ASTM F2170). Results above 3 pounds per 1,000 square feet per 24 hours or 75% relative humidity may require a dedicated moisture mitigation system beyond standard underlayment.

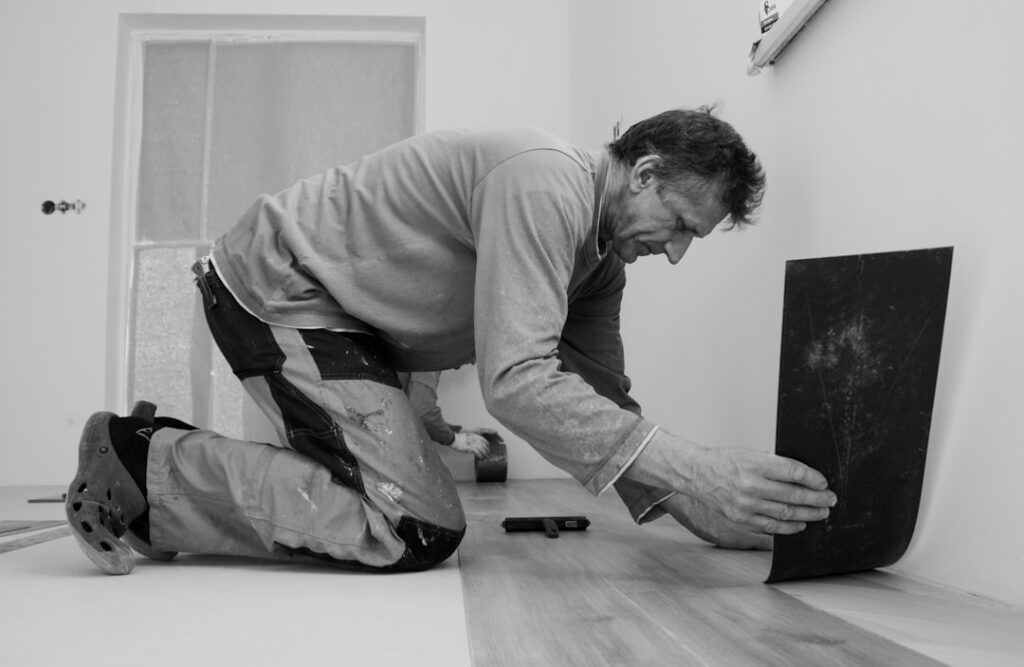

Rolling out the material: Start along the longest wall and roll the underlayment perpendicular to the direction your flooring will run. Keep the vapor barrier side facing down toward the subfloor. Butt each row tightly against the previous one without overlapping the foam or cork portion.
Seam taping: This step is critical and often skipped. Tape every seam with the manufacturer’s recommended tape or a quality moisture-barrier tape. Overlap the vapor barrier film edges by 4 to 6 inches and tape them securely. Unsealed seams defeat the entire purpose of waterproof underlayment.
Wall edges: Run the underlayment up the wall by 1 to 2 inches. This creates a tray effect that contains any moisture that migrates to the edges. Trim the excess after your flooring is installed and before you install baseboards.
Cost Comparison
Here is what you should budget for waterproof underlayment materials in 2026, based on a 500-square-foot room.
- 6-mil polyethylene sheeting: $25 to $75 total ($0.05 to $0.15 per square foot)
- Basic foam with vapor barrier: $125 to $200 total ($0.25 to $0.40 per square foot)
- Premium foam (QuietWalk, Floor Muffler): $200 to $375 total ($0.40 to $0.75 per square foot)
- Cork with vapor barrier: $250 to $750 total ($0.50 to $1.50 per square foot)
- Rubber underlayment: $300 to $625 total ($0.60 to $1.25 per square foot)
- Uncoupling membrane (tile): $500 to $1,250 total ($1.00 to $2.50 per square foot)
The underlayment typically represents 5% to 10% of the total flooring project cost. Spending an extra $100 to $200 on a better product is always worth it when your flooring investment is $3,000 or more. A failed installation due to inadequate moisture protection costs ten times what the right underlayment would have added to the budget.
Common Mistakes That Cause Failures
We see these mistakes repeatedly on job sites and in homes where DIY installations have failed.
Doubling up underlayment: More is not better. Using two layers of underlayment, or adding underlayment under flooring that already has an attached pad, creates excess cushion that breaks click-lock connections. Use one appropriate layer.
Skipping seam tape: Every untaped seam is a direct path for moisture vapor. We cannot emphasize this enough. Tape every single seam, even if it takes an extra 30 minutes and $20 worth of tape.
Using the wrong type: Felt paper is not waterproof underlayment. Red rosin paper is not waterproof underlayment. These products have legitimate uses, but moisture protection is not one of them. If you need waterproof underlayment, use a product specifically engineered for that purpose.
Installing over wet concrete: Waterproof underlayment manages normal moisture vapor transmission. It cannot handle a slab that is actively wet from leaks, hydrostatic pressure, or incomplete curing. Fix the water problem first, then install the underlayment.
Ignoring manufacturer requirements: Every flooring manufacturer specifies approved underlayment types and thicknesses. Using an unapproved product voids your flooring warranty, even if the underlayment itself is excellent. Always check the flooring manufacturer’s installation guide before purchasing underlayment.
Frequently Asked Questions
Can I use waterproof underlayment on a wood subfloor?
You can, but it is usually unnecessary on upper floors with plywood subfloors. The exception is over crawl spaces, where moisture vapor from the ground below needs a barrier. If you do use waterproof underlayment on a wood subfloor, ensure the wood can dry in at least one direction to prevent moisture trapping and rot.
Does waterproof underlayment prevent mold?
Waterproof underlayment reduces mold risk by preventing moisture from reaching your flooring, but it does not kill mold or prevent it entirely. If your subfloor has an active mold problem, address that with proper remediation before installing any flooring. Cork underlayment offers natural antimicrobial properties that provide an extra layer of protection.
How thick should waterproof underlayment be?
For laminate and engineered hardwood, 2mm to 3mm is ideal. For LVP without an attached pad, stay at 1.5mm or thinner. For cork under hardwood, 3mm to 6mm works well. Thicker is not always better because excess cushion causes floating floors to flex and click locks to separate.
Can I overlap waterproof underlayment seams instead of taping them?
Overlap the vapor barrier film by 4 to 6 inches and tape it, but never overlap the foam or cork layers. Overlapping the cushion material creates an uneven surface that shows through your flooring as ridges. The vapor barrier film is the only portion that should overlap.
Is waterproof underlayment the same as a moisture barrier?
A moisture barrier is a component of waterproof underlayment, but the terms are not identical. A standalone moisture barrier is just a plastic film. Waterproof underlayment combines a moisture barrier with cushioning, sound dampening, and thermal insulation in a single product. Both block moisture, but underlayment does more.
