A 1/16 grout line is one of the thinnest joints commonly used in tile work, measuring just one-sixteenth of an inch between tiles. That narrow gap produces a clean, contemporary, almost seamless surface where the tile itself becomes the star and the grid of joints nearly disappears. It is a popular choice for modern kitchens, large-format walls, and anyone chasing a minimalist look.
Thin joints come with real tradeoffs, though. This guide explains where a 1/16 inch joint makes sense, which tiles tolerate it, the grout you must use, and the installation details that keep a tight job from cracking or looking uneven.
What a 1/16 Inch Joint Looks Like

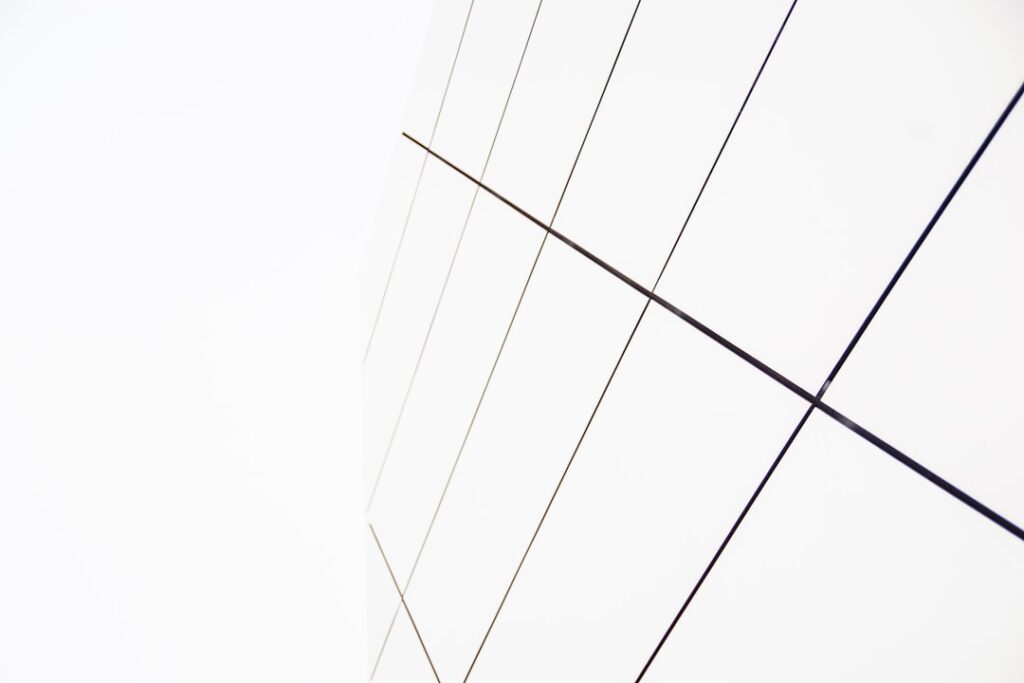

At one-sixteenth of an inch, the joint is roughly the width of a nickel’s thickness. From standing height, the lines read as faint seams rather than a defined grid, and a floor or wall looks closer to a continuous slab. Pair that narrow joint with a grout color matched to the tile and the effect is nearly monolithic, which is exactly why designers reach for it on sleek, modern projects.
The look is striking, but the margin for error shrinks dramatically. Wider joints absorb small variations in tile size and minor lippage where one tile sits higher than its neighbor. A tight joint hides none of that, so every imperfection in the tile and the substrate becomes visible.
When a 1/16 Grout Line Works Best
Thin joints depend heavily on the tile being extremely consistent in size. That points to a few specific situations:
- Rectified tile: These tiles are mechanically cut after firing so every edge is precisely the same dimension. They are the only tiles truly suited to a 1/16 inch joint.
- Polished and large-format tile: A seamless look pays off most on big, glossy surfaces where wide joints would interrupt the reflection.
- Wall applications: Walls take less abuse than floors and tolerate tight joints well.
- Modern and minimalist designs: Anywhere the goal is a continuous, slab-like surface.
It is worth knowing that many tile manufacturers and industry guidelines recommend a minimum joint width, often around 1/16 to 1/8 inch, and some specify wider joints for certain tiles. Always check the tile maker’s installation instructions, because going tighter than recommended can void warranties and invite problems.
When to Avoid a Tight Joint
Not every tile or location suits a 1/16 inch line. Handmade, pressed, or non-rectified tiles have slightly irregular edges, and forcing them into a tight joint produces a wavy, uneven look because there is no room to adjust spacing tile to tile. Natural stone with naturally varied edges falls into the same category.
Outdoor installations, large floors exposed to temperature swings, and surfaces over substrates that may move all benefit from wider joints that give the assembly room to expand and contract. A joint that is too thin in those settings concentrates stress and can lead to cracked grout or even lifted tiles. Floors also need movement joints at the perimeter and at intervals regardless of how thin the field joints are.
Choosing the Right Grout
Grout type is not optional with a narrow joint, it is dictated by the gap width. Sanded grout contains sand particles that can be too coarse to pack properly into a 1/16 inch joint and may not fill it cleanly. For joints this thin, manufacturers generally direct you to unsanded grout or a fine-textured grout designed for narrow joints.
- Unsanded grout: Smooth and easy to force into tight joints, the traditional choice for 1/16 inch lines.
- Epoxy grout: More expensive and trickier to work with, but extremely stain resistant and strong, and many epoxy products work well in narrow joints.
Always confirm the grout’s rated joint range on the bag or data sheet. Using the wrong grout in a thin joint is a common cause of weak, crumbling, or poorly filled lines.
Installation Cautions
A tight joint demands a flat substrate. Even small high spots in the subfloor or wall translate directly into lippage, and with a 1/16 inch joint there is no visual cushion to hide it. Many installers flatten the substrate carefully and use a self-leveling underlayment on floors before they will attempt joints this narrow.
Tile leveling clips and wedges, the small spacer systems that pull adjacent tiles to the same height while the mortar cures, are nearly essential for keeping a tight installation flat. Back-buttering each tile with thin-set helps ensure full coverage and consistent height. Because the work is unforgiving, a 1/16 inch grout line is one of the cases where hiring an experienced tile setter genuinely pays off, especially over large areas.
Maintenance Considerations
A common assumption is that thinner joints mean less cleaning, and there is some truth to it, less grout surface means less area to absorb dirt. But narrow joints also pack dirt more tightly and can be harder to scrub down into. Sealing cement-based grout after it cures, and resealing periodically, keeps the lines from staining and darkening.
Epoxy grout sidesteps most of this because it does not absorb stains and does not require sealing, which is part of why it is popular for tight joints in kitchens and bathrooms despite the higher cost and harder application.
Is It the Right Choice for You
Choose a 1/16 grout line when you want a modern, near-seamless surface, you are using rectified or large-format tile, the substrate is flat, and the manufacturer permits the joint width. It rewards careful installation with one of the cleanest looks in tile. Skip it for irregular, handmade, or stone tile, for outdoor or high-movement areas, and for any DIY job where you are not confident about achieving a perfectly flat layout. When the tile and conditions are right, a 1/16 inch joint elevates a space, but the success of the look rests almost entirely on the preparation beneath it.
It also helps to set expectations with whoever installs the floor before work begins. Discuss the joint width openly, ask whether the specific tile is rated for it, and confirm the plan for flattening the substrate and using leveling clips. A reputable installer may push back on an unreasonably tight joint, and that feedback is worth heeding rather than overriding. Remember too that grout is one of the few finishes that is genuinely difficult to change after the fact, so a tight joint paired with a matched grout color is close to permanent. Take the time to view a sample board or a small dry-laid section in your own lighting before committing, and you will avoid the most common regret with thin-joint tile, which is realizing only after installation that the flawless, seamless look magnifies every small imperfection.
