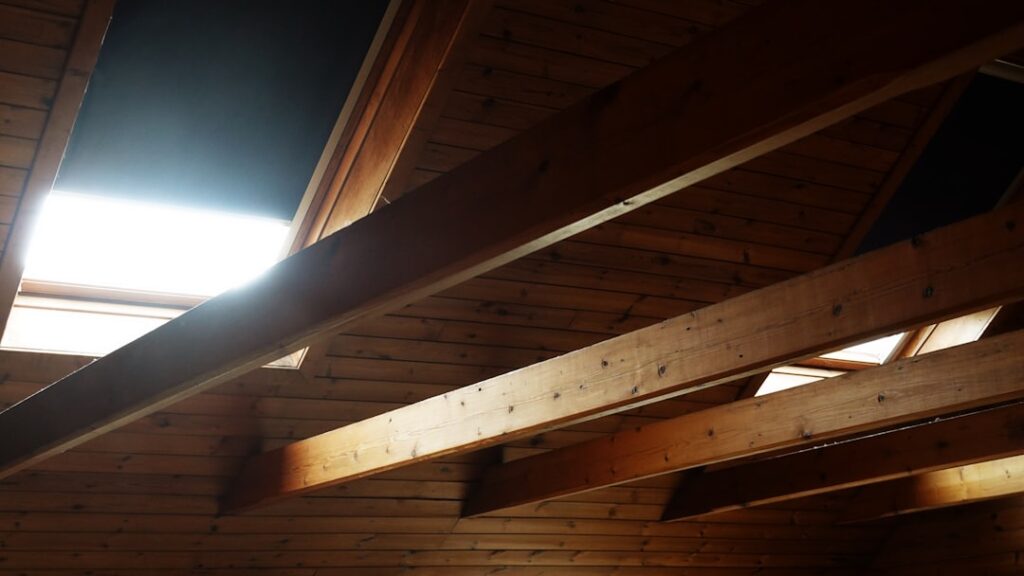

How to Insulate an Attic Roof Rafters: Methods Guide

Insulating between rafters is the one attic project where doing it wrong actively rots your roof. Learning how to insulate an attic roof rafters correctly means understanding one rule before touching a single batt: the assembly must either breathe or be sealed completely. Stuff fiberglass against the underside of the roof deck with no air gap and no plan, and warm moist air condenses on the cold sheathing all winter, feeding mold and delaminating plywood. Done right — vented with baffles, or unvented with sufficient foam — rafter insulation turns an attic into usable conditioned space and tames rooms that roast in July. Here are the methods, the R-value math, and the mistakes that generate remediation bills.

First Question: Why the Rafters and Not the Floor?

Insulating the attic floor is cheaper and easier, so rafter insulation only makes sense in specific cases: you are finishing the attic into living space, the attic houses HVAC equipment and ducts you want inside the thermal envelope, the roof is a cathedral ceiling with no attic floor to insulate, or complex framing makes floor air-sealing impractical. If none of those apply, stop here and blow insulation on the floor instead — you will hit higher R-values for a third of the money. If one does apply, the rafter route is legitimate, and the rest of this guide is for you.

The Two Legal Assemblies

Building science and the IRC allow exactly two rafter approaches. A vented assembly preserves a continuous air channel — minimum 1 inch, better at 1.5 to 2 inches — between the insulation and the roof sheathing, running unbroken from soffit intake vents to ridge or gable exhaust. Air washing along the deck carries moisture out and keeps the sheathing close to outdoor temperature. An unvented (hot roof) assembly eliminates the channel and instead keeps the sheathing warm enough that condensation cannot form, using air-impermeable insulation — spray foam against the deck, or rigid foam above it — with code-specified minimum ratios of foam R-value to total R-value (IRC R806.5). What is never allowed: air-permeable insulation like fiberglass or mineral wool alone against the deck with no vent channel. That hybrid is the assembly that grows mold.

Method 1: Vented with Batts — The DIY Standard

This is the approach most homeowners can execute well over a few weekends. Materials for a typical attic run $1.50 to $3.50 per square foot.

1. Install baffles: staple rigid vent chutes (AccuVent, Durovent, or site-built 1-inch foam board on spacer strips) to the underside of the sheathing in every rafter bay, running from the soffit to above the future insulation line — to the ridge for cathedral ceilings. Confirm soffit vents are open and a ridge vent exists; without both, this assembly does not work.
2. Air-seal the plane: foam-gun seal penetrations and gaps at the eaves and any kneewalls before insulating.
3. Fit the batts: friction-fit unfaced fiberglass or mineral wool fully lofted between rafters — R-15 in 2×4 bays, R-21 in 2×6, R-30 in 2×8, cut carefully around obstructions. Compressed or gapped batts forfeit real R-value.
4. Beat the rafter limit: 2×6 and 2×8 rafters cannot reach the code targets of R-49 to R-60 for ceilings in most climate zones (zones 4-8), so add a continuous layer of rigid foam board (1.5 to 2 inches of polyiso adds R-9 to R-13) across the rafter faces, taped at seams. This cross-layer also kills thermal bridging through the wood.
5. Finish per code: foam board and spray foam need a thermal/ignition barrier — typically 1/2-inch drywall — in living space.

Method 2: Unvented with Spray Foam — The Performance Route

Closed-cell spray polyurethane foam applied directly to the underside of the sheathing air-seals and insulates in one step, at roughly R-6 to R-7 per inch. It is the standard answer for complex rooflines, conditioned attics with HVAC, and retrofits where venting every bay is impossible. In colder zones, code requires a minimum share of the total R-value to be air-impermeable foam against the deck — commonly satisfied with 3 to 4-plus inches of closed-cell — often combined with cheaper batts inboard (“flash and batt”) to reach R-49 economically. Professional installation runs $4 to $8 per square foot of roof area for adequate depth, putting a whole attic at $4,000 to $10,000-plus. Open-cell foam (R-3.5 to R-3.8 per inch) is cheaper but vapor-permeable; in climate zones 5 and colder it requires a vapor retarder coating, and many building scientists prefer closed-cell against decks in cold climates, full stop. Spray foam is not a DIY product at this scale — off-ratio DIY kits are a documented source of odor and adhesion failures.

R-Value Targets and Real-World Payback

Current IRC targets for ceiling assemblies are R-49 in climate zones 4 and 5 and R-60 in zones 6 through 8, with R-30 to R-49 across the southern zones. Retrofits are not always forced to full code, but the closer you get, the better the room behaves. The payoff shows up fastest in two places: finished attic rooms that previously swung 20°F beyond the rest of the house, and homes with ductwork in the attic, where bringing ducts inside the envelope routinely trims meaningful percentages off heating and cooling bills. Utility rebates for attic insulation are common — check your provider before buying materials, as $200 to $600 back is typical.

Mistakes That Cause Damage

• Blocking the soffits: batts stuffed into the eaves choke the vent system for the whole roof. Baffles first, always.
• Fiberglass against the deck: the classic rot recipe, worth repeating because it remains the most common error found in DIY attics.
• Kraft facing on the wrong side: where a facing is used, it belongs toward the conditioned space in most US climates — never sandwiched cold-side where it traps moisture.
• Ignoring recessed lights and flues: non-IC-rated fixtures need clearance boxes, and combustion flues require code-specified gaps with metal flashing — insulation contact is a fire hazard.
• Skipping air-sealing: insulation slows heat; it does not stop airflow. Sealing penetrations before insulating is half the performance.
• Leaving foam exposed: both board and spray foam need an ignition or thermal barrier in habitable spaces per code.

Shopping List and Realistic Budget

For the vented batt-plus-board approach on a typical 600-square-foot attic roof plane, the cart looks like this: rigid vent baffles for every bay (about $2 to $4 each, so $60 to $150), two cans-worth of foam sealant with a $40 dispensing gun, unfaced R-21 or R-30 batts sized to your rafter spacing ($0.60 to $1.20 per square foot), and 4×8 sheets of 1.5-to-2-inch foil-faced polyiso at $30 to $45 per sheet for the continuous cross-layer, plus foil tape, cap screws, and a $15 batt knife. All-in materials commonly land between $1,200 and $2,400 — a third to a fifth of a professional spray foam quote for the same geometry, at a lower finished R-value per inch but a similar real-world result when executed carefully.

Protective gear is not optional line-item padding: a proper respirator or N95, goggles rather than glasses (fiberglass finds gaps), gloves, and a disposable coverall make the difference between a productive weekend and a miserable itchy one. Add temporary lighting and walk boards across the joists if the attic is unfloored. Two budget tips from experience: measure rafter depth and spacing in several places before ordering, because older homes wander off nominal dimensions, and buy one extra bag of batts — ripping custom widths for the odd bays consumes more material than the math suggests, and returning a sealed bag is easier than a second trip mid-project.

Which Method Should You Choose?

Straightforward gable roof, accessible bays, working soffit and ridge vents, and a modest budget: vented batts plus a continuous foam layer is the value play, fully DIY-able. Conditioned attic with HVAC, hips and valleys everywhere, or no way to vent: unvented closed-cell foam, professionally installed, is worth its price. Cathedral ceilings can go either way — vented if the rafter bays run clean from eave to ridge, unvented if they do not. Whichever path you take, the sequencing is identical: solve ventilation or seal it completely, air-seal, hit the highest R-value your assembly allows, and cover foam with the required barrier. How to insulate an attic roof rafters comes down to respecting that moisture rule — everything else is labor and math.
