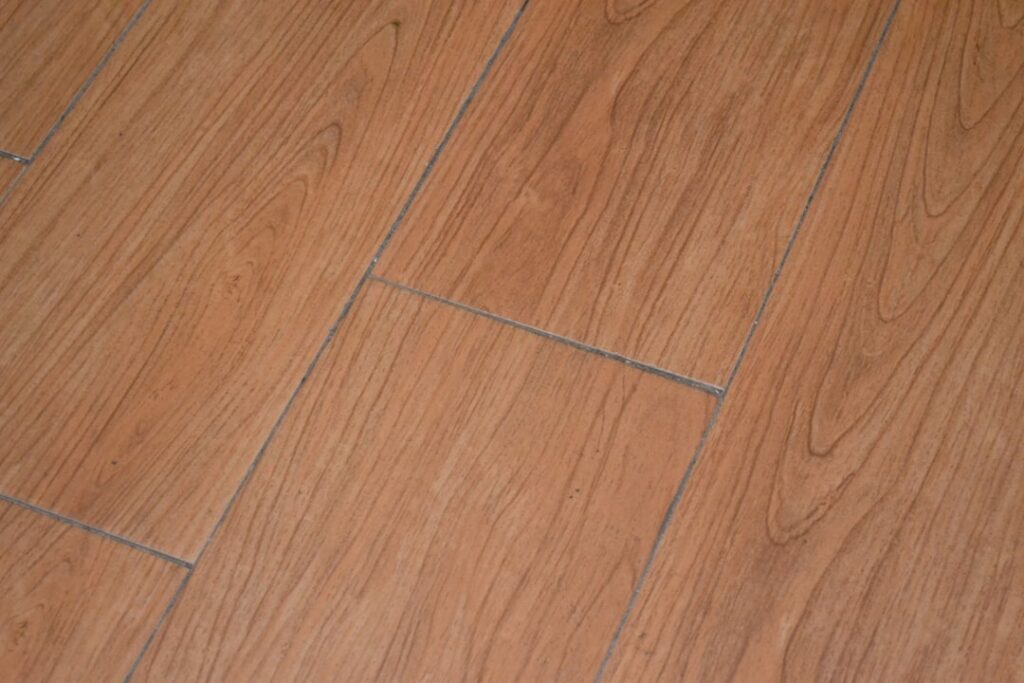

Thickness of Vinyl Plank Flooring: What to Choose and Why

Shoppers obsess over color and plank width, but the thickness of vinyl plank flooring is the spec that actually decides how the floor feels, how well it hides a rough subfloor, and how long it survives a busy household. Confusing the situation is the fact that “thickness” refers to two completely different numbers: the overall plank thickness measured in millimeters, and the wear layer measured in mils. They are not the same thing, and mixing them up leads people to overpay for the wrong floor. This guide breaks down both measurements, explains which one matters more, and gives you concrete recommendations by room and budget.

Two Numbers That Both Get Called “Thickness”

When a product sheet lists a plank as 6mm/20mil, it is telling you two separate things. The overall thickness of vinyl plank flooring is the total height of the plank, driven mostly by the core layer. The wear layer is the clear urethane-coated top film that takes all the abuse. A thick plank with a thin wear layer can scratch quickly, while a thinner plank with a fat wear layer can outlast it. You have to read both numbers together.

• Overall thickness (mm): Governs rigidity, sound, comfort underfoot, and how well the floor spans subfloor imperfections. Ranges from about 2mm to over 8mm.
• Wear layer (mil): Governs scratch, scuff, and dent resistance at the surface. Ranges from about 6 mil to 28 mil. One mil equals 1/1000 of an inch, so 20 mil is 0.020 inch of protective coating.

Overall Thickness: From 2mm Glue-Down to 8mm Rigid Core

The overall number tracks closely with the construction type. Here is how the common thicknesses map to real products.

2mm to 3.2mm: Flexible Glue-Down LVP

These thin, bendable planks are meant to be fully adhered to a very flat subfloor. Because they conform to whatever is beneath them, they demand a near-perfect substrate; any bump or divot below 1/16 inch will telegraph through. They are common in commercial settings and high-moisture rooms where a glued floor is preferred, and they are the most affordable to buy.

4mm to 5mm: Entry Rigid Core (SPC/WPC)

Once you hit 4mm with a stone-plastic composite (SPC) core, the plank becomes rigid enough to float over a subfloor with click-lock joints. This is the sweet spot for budget-conscious residential jobs. A 4mm SPC plank hides minor subfloor flaws up to about 1/8 inch over a 6 to 8 inch span and feels far more solid than thin glue-down.

6mm to 8mm+: Premium Rigid Core

Thicker cores add stiffness, warmth, and quiet. Many 6mm to 8mm planks include an attached IXPE or cork underlayment pad of 1 to 1.5mm, which cuts hollow-sounding footfall and adds a hint of cushion. These planks tolerate the most subfloor variation, often up to 3/16 inch, and feel closest to real hardwood underfoot. They also carry the highest price.

Wear Layer: The Number That Actually Predicts Lifespan

If you only optimize one spec, make it the wear layer. It is the direct predictor of how the floor looks after five or ten years of traffic. Manufacturers tie warranty length to wear layer, and the correlation is reliable.

• 6 to 12 mil: Light residential. Bedrooms, closets, guest rooms, low-traffic spaces. Warranties around 5 to 10 years.
• 12 to 20 mil: Standard residential. Living rooms, hallways, kitchens in a typical family home. Warranties around 15 to 25 years.
• 20 to 28 mil: Heavy residential and light commercial. Homes with big dogs, entryways, rentals, and small businesses. Warranties often 25 years to lifetime.

A common and costly mistake is buying an 8mm plank with only a 6 mil wear layer because the overall thickness sounds impressive. That floor will look thick but scratch like tissue paper. A 5mm plank with a 20 mil wear layer will serve a busy household far better.

Subfloor Imperfection Tolerance

One practical reason to go thicker is a subfloor you cannot perfectly flatten. Industry guidance calls for flatness within 3/16 inch over 10 feet, but many older homes miss that. Thicker rigid-core planks bridge minor waves and ridges that would show through thin glue-down vinyl as visible high spots or hollow clicking. If you are installing over an out-of-level slab or a slightly wavy plywood subfloor and cannot afford to grind or self-level it, a 6mm or thicker SPC plank buys you the most forgiveness. It is not a substitute for prep, but it raises the margin for error.

Cost by Thickness

Price climbs with both overall thickness and wear layer, and the two often move together in a product line. As a rough guide for material only, not installation, expect the following ranges.

• 2mm to 3mm glue-down, 6 to 12 mil: $1.00 to $2.50 per square foot
• 4mm to 5mm SPC, 12 to 20 mil: $2.50 to $4.00 per square foot
• 6mm to 8mm rigid core, 20 to 28 mil: $4.00 to $7.00 per square foot

Installation typically adds $1.50 to $4.00 per square foot depending on whether it is a floating floor or a full glue-down, and on how much subfloor prep the job needs. Thin glue-down often costs more to install because it demands a flatter, better-prepped substrate.

Recommendations by Room

Match the thickness of vinyl plank flooring to how the room gets used rather than chasing the biggest number.

• Bedrooms and closets: 4mm to 5mm with a 12 mil wear layer is plenty and keeps cost down.
• Living rooms and hallways: 5mm to 6mm with a 20 mil wear layer balances comfort and durability.
• Kitchens, entries, high-traffic zones: 6mm or thicker rigid core with a 20 to 28 mil wear layer resists scratches, dents, and moisture.
• Basements and over concrete: Rigid SPC of 5mm or more, which handles slab flatness and moisture better than flexible glue-down.
• Rentals and pet homes: Prioritize the 20 to 28 mil wear layer above all, even on a mid-thickness core.

The Bottom Line

Read both numbers, and let the room decide. For most homeowners the ideal combination is a 5mm to 6mm rigid core paired with a 20 mil wear layer, which delivers a solid, quiet feel, good subfloor forgiveness, and a surface tough enough for daily life. Splurging on overall millimeters while skimping on the wear layer is the classic trap. When you understand what each measurement of the thickness of vinyl plank flooring really controls, you can spend your money where it protects your floor the longest.

Attached Underlayment and How It Changes the Math

Many mid-range and premium planks arrive with a pad already bonded to the underside, usually 1mm to 1.5mm of IXPE foam or cork. That pad is counted in the overall thickness number, which is a common source of confusion. A plank advertised as 6.5mm might really be a 5mm core plus a 1.5mm attached pad. The pad is genuinely useful because it deadens sound, adds a touch of warmth over cold concrete, and smooths out the very smallest subfloor grit. What it does not do is add structural rigidity or scratch resistance, so do not let a thick attached pad talk you into accepting a thin wear layer. Also note that if a plank already has an attached pad, you should not stack a second separate underlayment beneath it. Doubling up the cushion makes the click joints flex too much and can cause the locking edges to fail over time.

Sound Ratings Worth Knowing

If you live in a condo or have bedrooms over living space, ask about the IIC and STC ratings. An attached cork or foam pad often pushes a floor to an IIC in the mid-60s, which many homeowners associations require. Thicker cores paired with a quality pad simply sound better underfoot, with less of the hollow tap that thin glue-down can produce on a bare slab.

How to Read a Spec Sheet Without Getting Fooled

Put it all together at the store. Look for the overall thickness in millimeters, the wear layer in mils, whether a pad is attached and its thickness, and the warranty term. If a salesperson leads with only the biggest millimeter figure, ask directly for the wear layer, because that is the number they sometimes bury. A quick mental rule keeps you honest: the wear layer protects the surface, the core provides the structure, and the pad handles the sound. Balance all three for the room, rather than paying a premium for one impressive number that does not match how you actually use the space.
