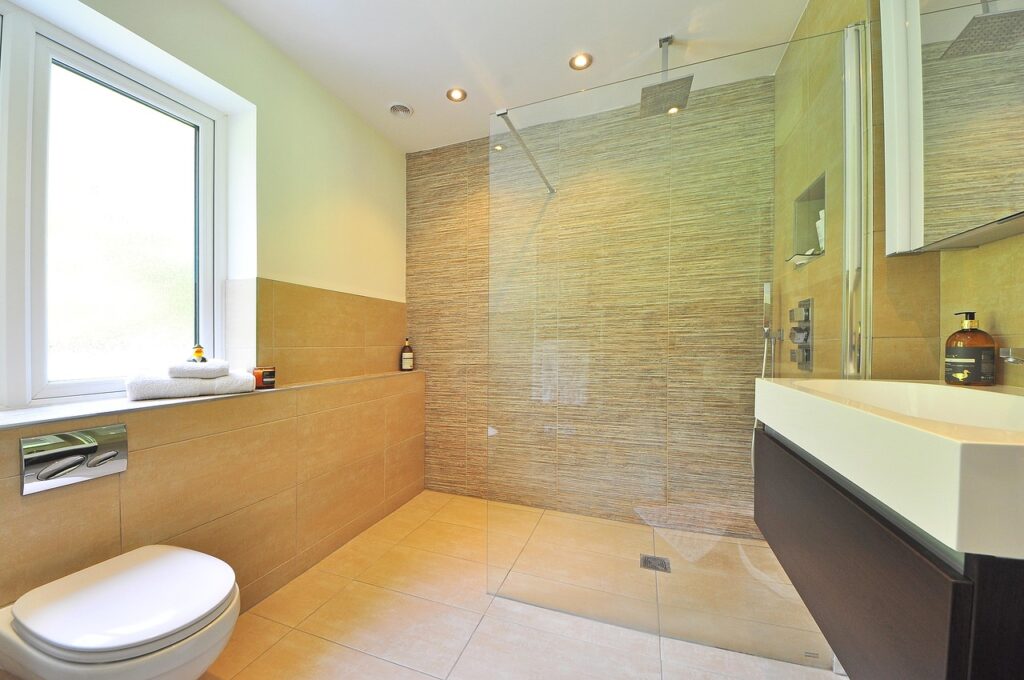

A poorly planned bathroom layout creates daily frustration: doors that hit the toilet, cramped showers, and vanities that block traffic flow. Getting the layout right before choosing tile colors and fixtures prevents expensive remodeling mistakes and ensures the space works as well as it looks. Whether you are building new, renovating, or just exploring options, these floor plans and dimensions cover every common bathroom size.
Standard Fixture Dimensions to Know
Before sketching any layout, you need to know the space each fixture requires. These are the standard dimensions used by architects and bathroom designers:
- Toilet: 27-30 inches deep, 14-18 inches wide. Requires 15 inches of clearance from the center of the bowl to any wall or obstruction on each side (30 inches total clear width). Code requires 21 inches of clear space in front, though 24-30 inches is far more comfortable.
- Single vanity: 24-36 inches wide, 18-22 inches deep. Standard height is 32-36 inches.
- Double vanity: 60-72 inches wide, 22 inches deep. Allow 36 inches between sink centers for comfortable simultaneous use.
- Bathtub: Standard alcove tub is 60 inches long, 30-32 inches wide. Freestanding tubs range from 55-72 inches long.
- Shower stall: Minimum 36 x 36 inches. Comfortable size is 48 x 36 inches or larger. Walk-in showers with a bench need at least 60 x 36 inches.
Half Bathroom (Powder Room) Layouts
A half bath contains only a toilet and sink, making it the simplest layout to plan. The minimum functional size is 3 x 6 feet (18 square feet), though 4 x 5 feet or 5 x 5 feet layouts feel significantly less cramped.
In a 3 x 6 layout, place the toilet at the far end of the room and the pedestal or wall-mounted sink opposite the door. A vanity cabinet will not fit in this size without blocking movement. For a 5 x 5 layout, the toilet and vanity can sit side by side on the same wall with room for a small 24-inch vanity with storage.
Corner sinks and wall-mounted toilets save precious inches in tight powder rooms. A wall-mounted toilet extends only 21 inches from the wall compared to 27-30 inches for a standard floor-mounted model, reclaiming 6-9 inches of floor space.
Small Full Bathroom Layouts (40-50 sq ft)
The classic 5 x 8 foot bathroom (40 square feet) is the most common small full bathroom in American homes. It fits a standard 60-inch tub/shower combo, a toilet, and a single vanity in a linear arrangement along one long wall, or an L-shaped layout with the tub on the short wall.
The most efficient 5 x 8 layout places the 60-inch tub along the 5-foot wall, the toilet next to the tub on the 8-foot wall, and the vanity between the toilet and the door. This arrangement keeps plumbing on two adjacent walls, reducing installation cost and allowing all three fixtures to function without tight clearances.
In a 5 x 9 or 6 x 8 layout, you gain enough room to upgrade to a 30 x 48 inch walk-in shower instead of a tub/shower combo. This extra foot makes a noticeable difference in how spacious the bathroom feels.
Medium Bathroom Layouts (50-80 sq ft)
Medium bathrooms in the 7 x 9 to 8 x 10 range open up significantly more layout options. A separate tub and shower become feasible, a double vanity fits comfortably, and you can include a linen closet or built-in storage.
A popular 8 x 10 layout positions a 60-inch vanity with double sinks on the wall opposite the door, a toilet in a semi-enclosed alcove beside the vanity, and a 48 x 36 inch walk-in shower in the corner. This design separates the wet zone from the grooming zone and provides clear sight lines that make the room feel larger than its square footage suggests.
If a soaking tub is a priority, an 8 x 10 bathroom can accommodate a 60-inch freestanding tub centered on one wall with the shower on the adjacent wall. The key is ensuring at least 6 inches of clearance around the entire tub for comfortable access and cleaning.
Large and Master Bathroom Layouts (80-150+ sq ft)
Master bathrooms of 10 x 12 or larger provide space for luxury features: a freestanding soaking tub, oversized walk-in shower with bench and dual shower heads, a double vanity with full-depth drawers, a private toilet room, and a dedicated makeup or grooming station.
Zoning becomes important at this scale. Divide the room into wet (shower and tub), grooming (vanity and mirrors), and utility (toilet and linen storage) zones. The toilet room should have its own door or at minimum a half wall for privacy. Place the tub as a focal point visible from the bedroom door or hallway entrance.
A 12 x 14 layout (168 sq ft) comfortably fits a 72-inch double vanity, a 60 x 42 inch walk-in shower with frameless glass, a 66-inch freestanding tub, a private water closet, and a storage niche or linen tower. Budget $25,000-$50,000 for a master bathroom renovation at this size, depending on fixture quality and finishes.
Layout Tips That Apply to Every Size
Regardless of your bathroom’s square footage, several universal principles improve functionality:
- Door swing direction: The door should open outward or into the bathroom without hitting a fixture. Pocket doors save 7-9 square feet of swing space and are worth the $200-$400 premium in any bathroom under 60 square feet.
- Plumbing wall consolidation: Keeping the toilet, sink, and shower/tub plumbing on one or two adjacent walls reduces rough-in costs by $500-$2,000 compared to spreading fixtures across all four walls.
- Natural light placement: Position the vanity near the window for the best grooming light. Avoid placing the toilet directly in front of a window without frosted glass or a window treatment.
- Ventilation: Every bathroom layout needs an exhaust fan rated for the room’s cubic footage. Under-ventilation causes mold, peeling paint, and moisture damage to flooring and cabinetry.
Planning Your Layout Before Construction
Before committing to a bathroom layout, create a scaled floor plan on graph paper (1 square = 6 inches works well) or use free tools like RoomSketcher, SmartDraw, or the IKEA bathroom planner. Cut out scaled fixture shapes and move them around the floor plan to test different arrangements.
Mark door swings, window locations, and existing plumbing connections. Moving a toilet drain more than 12 inches from its current location adds $500-$1,500 to renovation costs, so layouts that minimize drain relocation save significant money. If possible, visit a bathroom showroom to stand in mock layouts and physically test clearances before finalizing your plan.
