Ceiling Fan Pull Chain Replacement: The Complete Guide for Homeowners

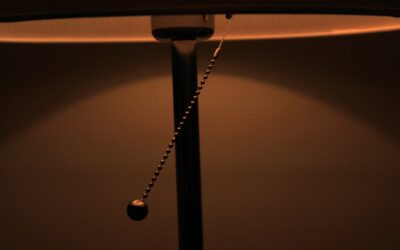

When a fan chain snaps off in your hand or the fan gets stuck on one speed, you do not need a new fan and you do not need an electrician. A ceiling fan pull chain replacement is one of the most satisfying 30-minute repairs in the house, and the part costs $8 to $15 at any hardware store. The trick is figuring out whether you just need a new chain or a whole new switch, then matching the replacement to your fan’s wiring. I have fixed dozens of these, and the process is nearly identical across every brand. Here is exactly how to do it safely.

Chain Broke Off Versus Switch Failed

First, diagnose which problem you actually have, because the fix is different. If the little beaded chain simply pulled out or snapped but the fan still changes speed when you fish out the stub and pull it, you likely just need a new chain or chain extension, the easiest fix of all. But if the chain is intact yet the fan won’t change speeds, stays stuck on one speed, or does nothing when you pull, the switch itself has failed internally and the whole switch must be replaced. A worn switch is by far the more common culprit; the contacts inside wear out after years of clicking through speeds.

Tools and Parts You Need

Gather everything before you climb the ladder so you are not going up and down.

• Replacement pull-chain switch (match the wire count, more on that below)
• Screwdrivers, both Phillips and flat
• Wire strippers and a few wire nuts
• Needle-nose pliers
• A non-contact voltage tester
• A sturdy stepladder and a helper to hold parts

The critical spec when buying the switch is the number of wires and the number of speeds. Fan switches are commonly labeled by their configuration, such as a 3-speed switch with 4 wires (often marked L, 1, 2, 3). Count the wires on your old switch and buy a match. A universal 3-speed replacement from Zing Ear (the ZE-268S6 is the ubiquitous one) covers most residential fans.

Step 1: Kill the Power

This is non-negotiable. Turn off the fan at its wall switch, then go to the breaker panel and shut off the circuit feeding the fan. Do not rely on the wall switch alone. Back at the fan, once you have the switch housing open, touch your non-contact voltage tester to the wires to confirm they are dead before you touch anything. Working live on a fan is how people get shocked from a wobbly ladder, which is far more dangerous than the shock itself.

Step 2: Open the Switch Housing

The pull-chain switch lives inside the fan’s central body, called the switch housing or lower cap. On most fans you remove a few screws from the bottom cover or the light-kit fitter to expose the wiring. Lower the cover carefully; the switch is mounted to it with a small threaded collar, and there will be several colored wires connected to the switch. Before you disconnect anything, take a clear photo of the wiring with your phone so you can replicate it exactly.

Step 3: Remove the Old Switch

Note how each wire connects. Some switches use screw terminals, but most residential fan switches have the wires joined with small wire nuts or push connectors. Unscrew the wire nuts and separate the switch wires from the fan wires, keeping track of which color goes where using your photo. Then unscrew the mounting nut on the outside of the housing that holds the switch body in place and pull the old switch out.

Step 4: Match and Wire the New Switch

Here is where the wire count matters. Lay the old and new switches side by side and match the wire positions. If your replacement has the same number of wires in the same colors, connect them one for one to the fan wires. If the colors differ between brands, this is where that pre-removal photo earns its keep, and many universal switches include a wiring diagram showing the L, 1, 2, 3 terminal logic.

1. Feed the new switch through the housing hole and secure it with its mounting nut
2. Strip fan wires fresh if the ends look nicked or corroded
3. Twist each switch wire to its matching fan wire and cap with a wire nut, tugging to confirm it is secure
4. Tuck the wires neatly back into the housing so nothing is pinched

If your fan uses a capacitor (a small black box wired to the switch that sets the speeds), keep it connected in the same position. A bad capacitor can also cause speed problems, and it is worth inspecting for swelling or a burnt smell while you are in there.

Step 5: Reassemble and Test

Screw the switch housing cover back on, making sure no wires are pinched between the cover and the body. Restore power at the breaker, turn on the wall switch, and pull the chain. You should cycle through high, medium, low, and off with each pull. If the speeds are working, you are done. Thread on a decorative pull or a longer chain extension if you want it easier to reach.

Just Replacing the Chain Itself

If your diagnosis was a broken chain and the switch works fine, the fix is even simpler. Sometimes the beaded chain pulls out of the switch entirely, leaving a small hole. Buy a chain-repair connector, a tiny coupling that joins two beaded chains, and splice a new length of chain onto the stub sticking out of the switch. If the chain broke off flush inside the switch, though, you cannot reattach it, and you will need to replace the switch after all.

When to Replace the Whole Fan Instead

Sometimes the repair is not worth it. If the fan is 15-plus years old, wobbles badly, the motor hums or runs hot, or you have already replaced the switch once, it may be time for a new fan. Modern fans with DC motors and remote controls run quieter and use far less energy, and they eliminate pull chains entirely. But for a fan that is otherwise in good shape, a $10 switch and half an hour is a no-brainer.

What It Costs

• Universal pull-chain switch: $8 to $15
• Chain repair connector and extension: $3 to $8
• Replacement capacitor if needed: $6 to $12
• Electrician if you would rather not DIY: $100 to $175

Understanding the Capacitor’s Role

The small black box wired to your pull-chain switch is the capacitor, and it deserves a closer look while you are in there because it is a frequent secondary cause of speed problems. The capacitor stores and releases electrical energy to create the different fan speeds; each speed uses a different capacitance value routed through the switch. When a capacitor fails, you get symptoms that mimic a bad switch, such as a fan that only runs on high, hums but won’t start, or runs slower than it should on every setting. Inspect it for a bulged case, a cracked housing, or a burnt smell, all signs it has failed. Capacitors are cheap, $6 to $12, and printed right on the body is the microfarad rating you need to match, often something like “5uF + 4uF + 6uF” for a three-speed fan. Buy an exact match and connect it in the same positions as the old one.

Upgrading to a Remote or Wall Control

While you have the switch housing open, consider whether a pull chain is even what you want anymore. Universal ceiling fan remote kits, made by Hampton Bay, Hunter, and others for $20 to $40, install inside the same housing and let you control speed and light from a handheld remote or a wall-mounted control. The receiver unit tucks up into the canopy or switch housing and wires between the fan’s incoming power and its motor. If you are already in there replacing a worn switch, spending an extra half hour to add a remote can be a worthwhile upgrade, especially for a fan over a bed or in a high-ceilinged room where reaching a chain is a nuisance. Just confirm the receiver physically fits your canopy space, since some compact fan housings are tight.

Common Mistakes to Avoid

A few errors trip people up on this simple repair. Do not skip the photo of the original wiring; relying on memory leads to swapped speeds or a fan that won’t run. Do not over-tighten the mounting nut on the new switch, which can crack the plastic housing and short the contacts. Do not reuse nicked or corroded wire ends; strip back to clean copper for a solid connection. And never work on the fan with only the wall switch off; a wall switch may cut one leg of power while the fan body stays live, so always kill the breaker. Following these small disciplines keeps a 30-minute job from turning into a frustrating afternoon of troubleshooting.

A ceiling fan pull chain replacement is genuinely one of the best value repairs a homeowner can do themselves. Kill the power at the breaker, photograph the wiring before you touch it, match the new switch to your wire count, and reconnect carefully. In half an hour you will have your fan cycling through every speed again for the cost of a fast-food lunch, instead of paying to replace the whole fixture.
