Manual Garage Door Lock: Types, Security, and Installation

An automatic opener is convenient, but it’s not a lock, and a power outage or a determined intruder can defeat it faster than you’d think. A manual garage door lock adds a physical, mechanical barrier that holds the door shut regardless of the opener, giving you real security and peace of mind. Whether you’re protecting a detached garage with no opener, securing a workshop full of tools, or adding a backup to your automatic system, a manual lock is inexpensive and effective. This guide covers the main types, security considerations, and installation.

Part of our Garage Doors guide — explore the full guide →

Why a Manual Lock Still Matters

Many homeowners assume the opener locks the door, but a manual garage door lock does something the opener can’t: it physically pins the door to the track or frame with a steel bolt. Automatic openers hold the door with the drive mechanism, which can be forced or bypassed, and they’re useless during a power failure unless you engage a battery backup. A mechanical lock doesn’t care about electricity.

For detached garages, sheds, and workshops without openers, a manual lock is the primary security. For attached garages with openers, it’s a strong secondary layer, especially valuable when you’re away on vacation and want the door immovable no matter what.

Types of Manual Garage Door Locks

Several lock styles suit different doors and needs:

• Slide bolt (side lock): A steel bar that slides through a bracket into a hole in the track, jamming the door in place. Simple, cheap, and very effective. Often installed in pairs, one per side.
• T-handle lock: A keyed handle mounted in the center of the door that operates spring-loaded bars extending into both side tracks. Common on doors without openers.
• Deadbolt-style garage lock: A keyed bolt that throws into the track, lockable from inside and out.
• Cane bolt / drop bolt: A vertical bolt that drops into a hole in the concrete floor, common on the stationary leaf of side-hinged garage doors.

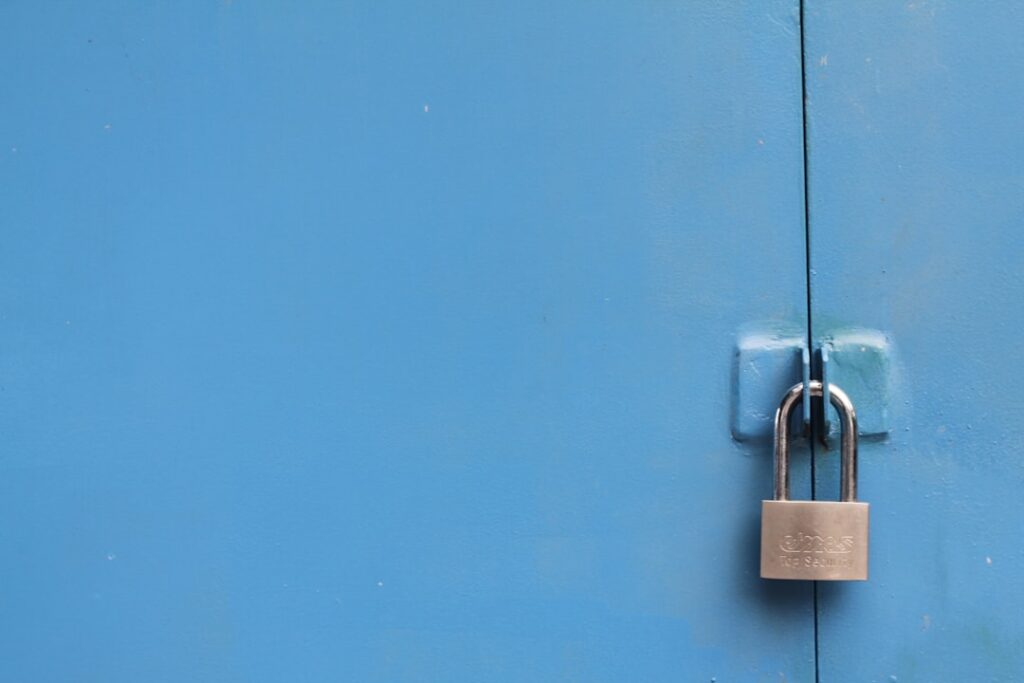

• Padlock and hasp: The simplest option, a hasp on the track with a padlock, though less convenient.

For most sectional overhead doors, a pair of slide bolts or a T-handle system offers the best mix of security and ease of use. Slide bolts cost about $10 to $25 each; a keyed T-handle kit runs $25 to $60.

Critical Safety Warning With Openers

If your door has an automatic opener, you must disengage or disable the opener whenever the manual lock is engaged. Trying to open the door with the opener while a manual lock holds it shut can bend the door, strip the opener gears, or break the mechanism. This is the single most important rule with manual locks on powered doors.

Some modern openers include a lock mode, and some manual locks have a switch that cuts opener power when engaged. If you’ll use a manual lock regularly alongside an opener, choose a system with an interlock, or get in the strict habit of pulling the opener’s emergency release before locking.

Installing a Slide Bolt Lock

Slide bolts are the easiest manual lock to add. Here’s the process:

1. Close the door fully so the panels sit squarely in the track.
2. Position the slide bolt bracket on the inside of the door near a horizontal rail, aligning the bolt with a slot or hole in the vertical track.
3. Mark and drill pilot holes, then fasten the bracket to the door with the provided self-tapping screws.
4. Check that the bolt slides cleanly into the track opening; drill a hole in the track if there isn’t one.
5. Repeat on the opposite side for a two-point lock, which is far more secure than a single bolt.
6. Test by engaging both bolts and confirming the door won’t lift.

Two slide bolts, one on each side, resist prying and lifting from both edges. A single center T-handle achieves the same two-point locking through internal bars, which is why it’s popular on opener-free doors.

Installing a T-Handle Lock

A T-handle lock takes a bit more work but gives keyed convenience:

1. Center the handle location on the door, typically at a comfortable height, and mark the mounting hole.
2. Drill the hole for the handle shaft through the door panel.
3. Mount the T-handle from the outside and secure the lock body and spring-bar mechanism on the inside.
4. Attach the two horizontal lock bars so they extend into slots in each vertical track when the handle is turned.
5. Align the bars with the track and drill entry holes if needed.
6. Test the key operation and confirm both bars seat firmly.

The keyed handle lets you lock and unlock from outside, useful for a detached garage you enter through the main door. Keep a spare key somewhere safe, since a jammed T-handle on a locked door is a hassle.

Choosing the Right Lock for Your Door

Match the lock to your situation. If you have no opener and enter through the garage door, a keyed T-handle makes sense. If you have an opener and want a vacation-grade backup, a pair of inside slide bolts is cheap and strong. For side-hinged carriage doors, cane bolts into the floor secure the passive leaf while a deadbolt handles the active one.

Consider the door material too. Lightweight aluminum or single-layer steel doors benefit from spreading the locking force across two points, since a single bolt on a flimsy door can let the panel flex enough to defeat it. Two-point locking is the standard for good reason.

Locking Detached vs Attached Garages

Your locking strategy should reflect how the garage connects to your home. A detached garage with no opener is best secured with a keyed T-handle so you can lock and unlock from outside, backed up by good exterior lighting and, ideally, a hardened hasp and padlock for the side entry door. Since a detached garage often stores expensive tools and equipment, treat it like an outbuilding that needs its own real security, not an afterthought.

An attached garage is different, because the interior door from the garage into the house is your true security line. That door should be a solid-core or steel door with a quality deadbolt, treated as an exterior entry even though it’s technically inside. In that setup, the manual lock on the overhead door serves mainly as a vacation or reinforcement measure. Whichever configuration you have, remember that the overhead door is only one layer; pair it with secured entry doors and lighting for genuine protection.

Smart Locks and Modern Alternatives

Manual locks aren’t your only option today. Some homeowners supplement a mechanical lock with a smart garage controller that lets you check the door’s status and open or close it from your phone, and alerts you if it’s left open. These add convenience and monitoring, but remember they secure the opener, not the door itself, and depend on power and Wi-Fi. They complement a manual lock rather than replace it.

For the strongest setup, combine a physical manual lock for absolute security when you’re away with a smart monitor for everyday awareness. The manual lock guarantees the door can’t be forced open even during a power outage or a hack, while the smart device handles daily convenience. This layered approach gives you both peace of mind and modern usability, covering the weaknesses of each system with the strengths of the other.

Maintenance and Best Practices

Manual locks need almost no upkeep, but a few habits keep them working. Apply a shot of dry lubricant to the bolt and track slots once or twice a year so they slide freely. Check that the mounting screws stay tight, since a vibrating door can loosen them over time. And always confirm the bolt fully engages the track before you count on it.

Most importantly, build the habit of never running the opener against an engaged lock. Add a reminder sticker near the wall button if others in the house use the garage. Used correctly, a manual garage door lock is one of the cheapest and most reliable security upgrades you can make, turning a vulnerable overhead door into a genuinely secured entry point.
