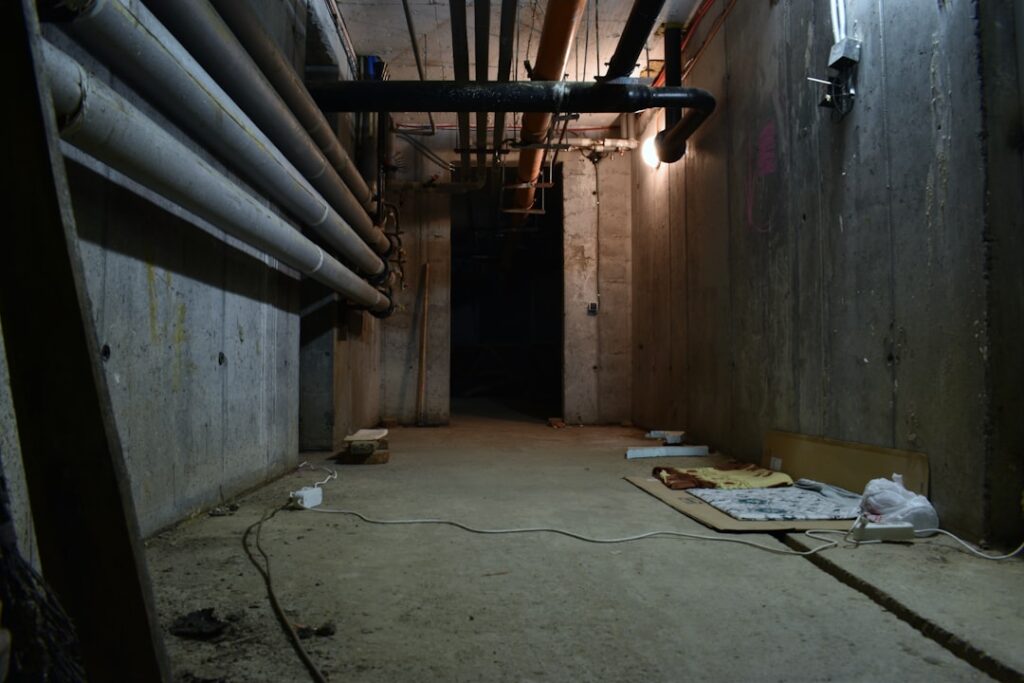

Basement Waterproofing Membrane

A basement waterproofing membrane is a physical barrier applied to the foundation that either blocks water from entering or channels seepage safely to a drain. Whether it goes on the outside to stop water at the source or on the inside to manage water that gets through, a basement waterproofing membrane is the core of most serious waterproofing systems. This guide explains the membrane types, where each belongs, and how they’re installed.

What a Waterproofing Membrane Does

Concrete and block foundations are porous. Water passes through them by capillary action and, under a high water table, by hydrostatic pressure. A membrane interrupts that path. Exterior membranes seal the wall so water can’t get in; interior membranes accept that some water arrives and route it down to a drainage system instead of letting it reach finished walls. The right choice depends on whether you’re stopping water or managing it.

The Three Main Membrane Types

• Liquid-applied membrane: a spray-, roll-, or trowel-on coating, often asphalt-modified (bituminous), polyurethane, or acrylic. It cures into a seamless rubbery layer that conforms to the wall and seals cracks and irregularities. Excellent on exterior walls with complex shapes because there are no seams to fail. Coverage and thickness matter, so follow the manufacturer’s mil-thickness spec.
• Sheet membrane: pre-formed rolls of rubberized asphalt, HDPE, or self-adhesive material applied to the wall with overlapping seams. Consistent thickness and fast coverage on flat walls, but the seams and penetrations must be lapped and sealed correctly or they leak.
• Dimpled drainage membrane (dimple board): a rigid HDPE sheet molded with raised dimples that create an air gap between the membrane and the wall. It doesn’t seal the wall; it lets any water drain down the gap to a footing or interior drain while keeping the finished side dry. Used on both exterior (as a drainage/protection layer over a liquid membrane) and interior walls.

Interior vs Exterior Membrane Application

This is the fundamental split:

• Exterior membrane: applied to the outside of the foundation after excavating down to the footing. Liquid or sheet membrane seals the wall, and a dimple board over it protects the membrane and drains water to an exterior footing drain. This stops water before it enters, the most thorough approach, but requires digging out the whole perimeter and typically costs $10,000 to $20,000.
• Interior membrane: a dimpled sheet fastened to the inside of the wall that channels any seepage down behind it to an interior perimeter drain and sump pump. It doesn’t stop water at the wall but keeps the living space and any finished walls dry. Far less invasive and cheaper, and it can be installed year-round without excavation.

Exterior is best when you want to keep water out of the structure entirely and are already excavating. Interior is the practical choice for finishing a basement and managing chronic seepage without tearing up the yard.

How Exterior Membrane Installation Works

1. Excavate around the foundation down to the footing, exposing the full wall height.
2. Clean the wall, patch voids and tie holes, and let it dry.
3. Apply the liquid membrane to the specified thickness, or roll out sheet membrane with properly lapped, sealed seams.
4. Install a dimpled drainage board over the membrane to protect it and channel water down.
5. Lay a perforated footing drain in gravel at the base to carry water away.
6. Backfill carefully so the membrane and board aren’t damaged.

This is heavy, skilled work involving excavation near the foundation, and it’s firmly a professional job.

How Interior Membrane Installation Works

1. Install or confirm an interior perimeter drain along the base of the wall, tied to a sump pit.
2. Fasten the dimpled membrane to the wall with the dimples facing the concrete, creating the drainage gap.
3. Tuck the bottom edge into the drainage channel so collected water flows down into it.
4. Seal the top edge and any fasteners.
5. Frame and finish over the membrane if desired, keeping finish materials off the concrete.

Interior membrane paired with drainage is often DIY-adjacent for handy owners, but tying it into a proper drain and sump usually warrants a pro.

Membrane vs Sealer: Don’t Confuse Them

A masonry waterproofing paint or sealer ($30 to $60 per gallon) is not a membrane. Sealers resist minor dampness and vapor but can’t withstand hydrostatic pressure; water simply pushes them off the wall over time. A membrane, especially a proper exterior one, is a far more robust barrier built to handle real water pressure. Use sealers for light dampness and membranes for genuine water intrusion.

Typical Costs

• Liquid membrane material: roughly $0.50 to $2 per square foot in product, more for premium polyurethane.
• Sheet membrane material: similar per-square-foot range plus labor for seaming.
• Dimple board: about $0.50 to $1.50 per square foot.
• Interior membrane and drainage system installed: $3,000 to $8,000.
• Full exterior membrane with excavation: $10,000 to $20,000.

Bituminous vs Non-Bituminous Membranes

Among liquid and sheet membranes, the chemistry matters for durability:

• Bituminous (asphalt-based): the traditional and most affordable choice, applied as a spray, roll-on, or peel-and-stick sheet. It seals well but can become brittle in very cold temperatures and degrade faster over decades, so it is best where it stays buried and protected.
• Non-bituminous (polyurethane, acrylic, rubberized): more flexible and longer-lasting, staying elastic across temperature swings and bridging small future cracks. Costs more but resists aging better, making it the premium exterior choice.

For a foundation you want to protect for decades, a flexible non-bituminous membrane justifies its higher price. For a tighter budget on a well-drained site, a quality bituminous membrane protected by dimple board performs reliably.

Surface Prep Makes or Breaks the Membrane

No membrane bonds to a dirty, wet, or crumbling wall. Whether interior or exterior, preparation determines whether the membrane lasts or peels:

• Clean the surface of dirt, loose concrete, and old coatings.
• Patch tie holes, honeycombing, and voids with hydraulic cement.
• Fill and treat existing cracks before coating over them.
• Round or fillet the sharp footing-to-wall corner so the membrane doesn’t span a hard angle where it could tear.
• Let the surface dry to the moisture level the product specifies; many liquid membranes fail when applied to a damp wall.

Skipping prep is the number-one reason membranes fail early, so it is worth the extra day of work.

How Long a Membrane Lasts

A properly installed and protected exterior membrane can last the life of the foundation, often several decades, because it stays buried, undisturbed, and shielded by drainage board. Interior dimpled membranes last similarly long since they are inert plastic doing a simple drainage job. The weak points are always workmanship: poorly lapped sheet seams, thin spots in a liquid application, or damage during backfill. This longevity is what separates a real membrane system from a surface sealer, which may need reapplication every few years and still cannot hold back pressurized water.

Membrane in New Construction vs Retrofit

Applying a membrane is far easier during new construction than as a retrofit. On a new build, the foundation walls are already exposed before backfilling, so the exterior membrane goes on cleanly with full access and adds relatively little to the project. Retrofitting an exterior membrane on an existing home is the expensive scenario, because the whole perimeter must be excavated first, which drives the $10,000 to $20,000 cost. This is why, if you are building or having major foundation work done, waterproofing the exterior then is a smart, low-cost investment against future leaks. For an existing home with a wet basement, an interior dimpled membrane tied to drainage usually delivers a dry space for a fraction of the exterior retrofit cost, without touching the yard.

When to Call a Professional

Any exterior membrane job requires excavation near the foundation and correct membrane thickness and drainage, so hire a contractor. Call one too when leaks are active and recurring, when water pushes through under pressure, or when you see cracks wider than ¼ inch, horizontal cracking, or bowing walls, which point to structural problems a membrane alone won’t fix. Interior dimple-board over an existing drain is the most DIY-friendly membrane task, but even that works best when a pro has established the drainage.

Bottom Line

A basement waterproofing membrane is the durable core of a real waterproofing system, unlike a sealer. Choose an exterior liquid or sheet membrane with dimple-board protection to keep water out entirely, or an interior dimple membrane tied to a perimeter drain to manage seepage without excavation. Match interior versus exterior to your goal and budget, and bring in a professional for excavation, active leaks, or any structural warning signs.
