Walk-In Shower Grab Bar Placement Diagram

Most grab bars in American bathrooms are installed in the wrong place, at the wrong angle, or into nothing but drywall — which makes them decoration at best and a hazard at worst. A proper walk in shower shower grab bar placement diagram boils down to a handful of exact numbers: 33 to 36 inches off the floor for horizontal bars, a vertical entrance bar starting near the door, and a bar within reach of the seat and the controls. This guide lays out those positions wall by wall, translates the ADA specifications that professionals work from, and covers the blocking and mounting details that determine whether a bar holds 250 pounds or rips free on the first real slip.

The Numbers That Define Correct Placement

Draw the diagram in your head around four measurements. Horizontal grab bars mount with the top of the gripping surface 33 to 36 inches above the finished floor — the height at which a standing adult’s hand naturally lands with the elbow slightly bent. Vertical entrance bars start about 32 to 39 inches off the floor and run upward 18 inches or more, positioned within a few inches of the shower entry so there is something to hold during the step in, which is statistically the most dangerous second of the shower. Bars themselves should be 1-1/4 to 1-1/2 inches in diameter — small enough to wrap fingers around fully — and stand exactly 1-1/2 inches off the wall, close enough that an arm cannot slip between bar and wall during a fall. Every bar must hold a 250-pound point load in any direction; that is the ADA benchmark, and residential bars should be installed to the same standard because physics does not check the building’s occupancy type.

Wall-by-Wall Placement for a Walk-In Shower

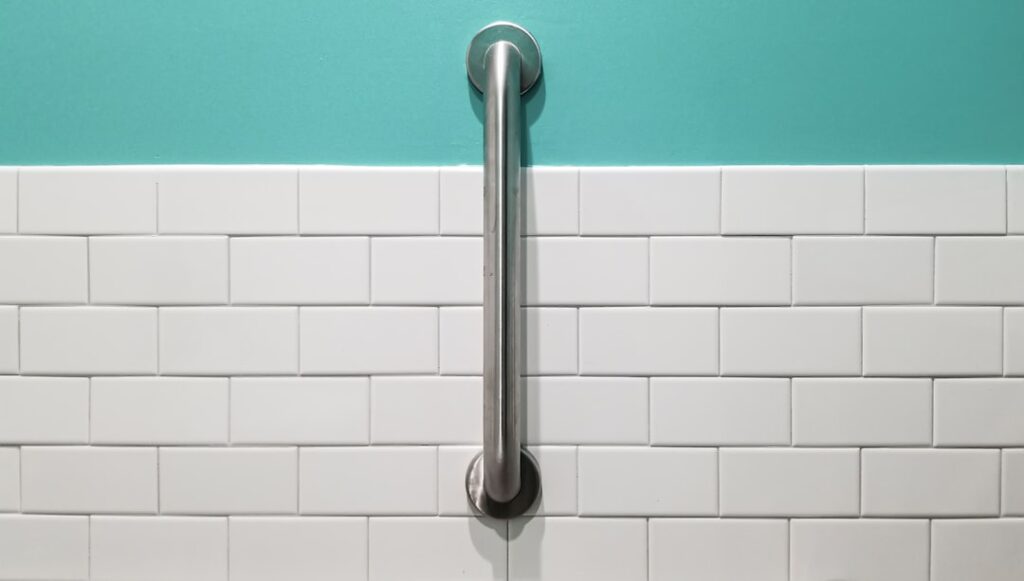

Entry wall (vertical bar)

Mount a 18- to 24-inch vertical bar on the wall at the shower opening, 2 to 4 inches inside the entry edge, with its lower end around 33 to 36 inches off the floor. Users grip it while stepping over the threshold or curb — install this one even if you install nothing else, and consider a matching bar just outside the entry for two-handed support during the transition.

Back wall (long horizontal bar)

Run a 24- to 48-inch horizontal bar along the back wall at 33 to 36 inches. In an ADA-style roll-in shower the back-wall bar spans nearly the full wall. This is the workhorse bar for standing balance while washing and for steadying during turns.

Control wall (short horizontal or diagonal bar)

Place a 12- to 24-inch bar near the valve so a user steadies themselves while reaching to adjust temperature — one of the most common slip moments, because the body leans and the eyes leave the floor. Keep it clear of the valve trim by a few inches so knuckles have room. Some installers angle this bar at up to 45 degrees, which suits the natural wrist motion of pulling upright from a seat; angled bars are acceptable residentially, though straight horizontal and vertical placements follow the accessibility standards most strictly and give the most predictable grip.

Seat wall (if the shower has a bench)

With a built-in or fold-down seat, mount a horizontal bar on the wall beside the seat at the standard 33-36 inches, extending to within about 6 inches of the seat’s front edge, plus a vertical or L-shaped bar the user can pull against when rising. L-shaped bars — a horizontal run that turns up vertically — cover both sitting stability and the sit-to-stand pull in one fixture and are the best single choice at a bench.

What the ADA Standard Actually Requires

Residential bathrooms are not legally bound by the ADA, but its specifications (ADA 2010 Standards, sections 608 and 609) are the engineering consensus worth copying. For a 36×36 transfer shower: bars across the control wall and the wall opposite the seat, none over the seat itself. For roll-in showers: bars on all three walls not occupied by the seat, mounted 33-36 inches high, no more than 6 inches from adjacent walls. Bar surfaces must be free of sharp elements, rotate-proof in their mounts, and rated for 250 pounds. Copying these specs costs nothing extra and future-proofs the bathroom for resale into the aging-in-place market, which grows every year.

Blocking: The Part Behind the Tile That Matters Most

A grab bar is only as strong as what it screws into. The gold standard is solid wood blocking — 2×8 or 2×10 lumber, or 3/4-inch plywood panels — fastened between studs behind the waterproofing before the wall closes up. During any remodel, block generously: run blocking continuously at 32 to 38 inches around the entire shower and vertically at the entry, because lumber is cheap and opinions about bar placement change. On existing walls, options rank as follows: hit studs directly with 2-1/2-inch stainless structural screws through the bar’s flanges; use specialty hollow-wall anchors rated for grab bars (WingIts and Toggler SnapToggle systems legitimately achieve 250-plus pounds in 1/2-inch drywall or cement board when installed exactly per instructions); or surface-mount to tile over solid mud-bed walls with appropriate anchors. Never trust plastic cone anchors or suction-cup bars for weight-bearing — suction bars are balance assists at most, and every manufacturer says so in the fine print.

Installation Tips on Tile

1. Locate studs or blocking with a magnet-type finder (it finds the drywall screws) and confirm with a test probe inside the future flange footprint.
2. Mark hole centers with tape on the tile to prevent bit wander, and drill with a carbide or diamond bit at low speed, misting water to cool porcelain.
3. Seal each penetration with a dab of 100 percent silicone before driving screws — every hole below the showerhead line is a potential leak into the wall.
4. Torque flanges snug, install the cover rings, and then test properly: put your full weight on the bar with a straight downward pull and a sideways yank. Do it now, not during a fall.

Placement Errors to Avoid

A few recurring mistakes undo otherwise good installs. Mounting bars too high — 40-plus inches — because “that’s where it looked right” puts the grip above the natural arm position and forces a shoulder-height grab during a fall, when arm strength is weakest. Installing a diagonal bar at a steep angle lets a slipping hand slide down the bar like a fire pole; keep diagonals at 45 degrees or shallower, or stick to horizontal and vertical. Placing the only bar on the plumbing wall because the studs were easy to find serves the installer, not the user — placement follows the body’s path through the shower: enter, stand, adjust, sit, rise, exit. And relying on a towel bar as a de facto grab bar is the most dangerous habit of all, since towel hardware anchors in plastic wings rated for terrycloth, not a falling adult. If people in your house already grab the towel bar, that is your diagram telling you where the real bar belongs.

Choosing Bars Worth Installing

Stainless steel with a peened or knurled grip texture beats polished chrome in wet hands — smooth chrome turns slick under soap. Moen, Kohler, Delta, and Grabcessories all sell ADA-rated residential bars from $20 to $80 that look like towel bars rather than hospital hardware; modern finishes in matte black and brushed nickel mean safety no longer fights the design. Buy bars with concealed-screw flanges for looks, and confirm the packaging states an actual load rating. A complete three-bar walk-in shower setup — entry vertical, back-wall horizontal, control-wall bar — costs $100 to $250 in hardware plus a morning of careful drilling, and it is the highest-return safety money in the entire house: falls are the leading cause of injury for Americans over 65, and the bathroom is where a disproportionate share of them happen.

The Diagram, Summarized in Words

Stand at the entry: a vertical bar at the door edge, 33 inches up, rising 18 to 24 inches. Look at the back wall: a long horizontal bar, top edge 33 to 36 inches off the floor. Turn to the valve: a short bar beside the controls at the same height. If there is a seat: an L-shaped bar beside it, horizontal leg at 33-36 inches, within 6 inches of the seat edge. Everything anchored to wood or rated anchors, everything holding 250 pounds, every hole sealed. Follow that walk in shower shower grab bar placement diagram and the bars will be exactly where a hand lands when it matters.
