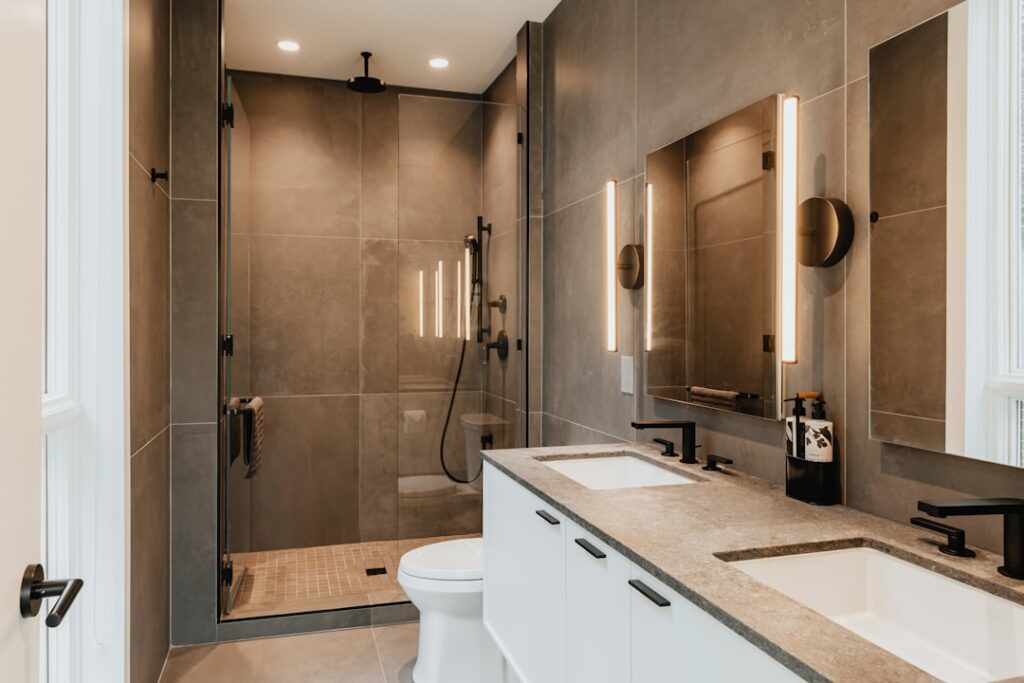

Bathroom Tile Installation: Complete Guide for Homeowners

A beautifully tiled bathroom can last for decades, but the same job done poorly can leak, crack, and grow mold within a year. Bathroom tile installation is one of the most rewarding home projects, yet it is also one of the least forgiving, because bathrooms combine constant moisture with surfaces that must stay watertight. Success depends far more on what happens behind the tile, waterproofing and substrate, than on the tile itself. This guide walks through the full process, the materials you need, the mistakes that cause failures, and when the job is better left to a professional.

Why Waterproofing Comes First

Tile and grout are not waterproof on their own. Water passes through grout joints and around tile edges, so the layer behind the tile must stop moisture from reaching the wall framing and subfloor. This is the single most important part of any bathroom tile job, especially in showers and tub surrounds. Skipping or botching waterproofing is the leading cause of mold, rot, and failed installations. Proper waterproofing protects the structure and is what separates a lasting installation from one that fails inside the wall where you cannot see it.

The Right Substrate and Backer Board

You cannot tile directly over standard drywall in wet areas. Wet zones like showers need a moisture-appropriate backer.

• Cement backer board: A common, durable substrate for floors and wet walls, paired with a waterproofing membrane.
• Foam tile backer boards: Lightweight, integrated waterproof panels designed for showers.
• Waterproofing membranes: Liquid-applied or sheet membranes go over the backer to create a continuous waterproof barrier.
• Floor substrate: A solid, flat, deflection-free subfloor with backer board or membrane underneath floor tile.

Behind every good tile job is a properly prepared, flat, and waterproofed substrate. Take the time to get this layer right.

Tools and Materials

Gather everything before you start so you are not pausing mid-job.

• Tile, plus 10 to 15 percent extra for cuts and breakage
• Thinset mortar suited to your tile and substrate
• Notched trowel sized to the tile
• Tile spacers and a level
• Tile cutter or wet saw for cuts
• Backer board, waterproofing membrane, and seam tape
• Grout, grout float, and sponges
• Sealer for grout and natural stone

Step-by-Step Installation

1. Prep and waterproof. Install backer board, tape and seal the seams, and apply the waterproofing membrane in wet areas. Let it cure.
2. Plan the layout. Find the center and dry-lay tiles to balance cuts. Avoid thin slivers at edges by adjusting the starting point.
3. Spread thinset. Apply mortar with the notched trowel in small sections so it does not skin over before you set tile.
4. Set the tile. Press each tile firmly with a slight twist, insert spacers, and check level frequently across multiple tiles.
5. Cut to fit. Measure and cut edge and corner tiles, and notch around fixtures and drains.
6. Let it cure. Allow the thinset to cure fully, typically about 24 hours, before grouting.
7. Grout the joints. Work grout into the joints with the float at an angle, then wipe excess with a damp sponge.
8. Seal and finish. After the grout cures, seal grout lines and any natural stone, and caulk corners and changes of plane.

Grout and Sealing Details

Grout choice matters in a bathroom. Use the correct grout for your joint width, and consider a stain-resistant or epoxy grout in showers for better moisture and mold resistance. Apply grout only after the thinset has cured, and avoid grouting inside corners and where the wall meets the floor or tub; those movement joints should be caulked instead to prevent cracking. Once cured, seal cement-based grout and any porous natural stone to resist water and staining, and reseal periodically over the years.

Common Mistakes to Avoid

• Skipping waterproofing: The number one cause of failures. Never rely on tile and grout alone.
• Tiling over an uneven surface: Leads to lippage and cracked tiles. Flatten the substrate first.
• Wrong thinset or trowel: Causes weak bonds and hollow spots.
• Grouting too soon: Disturbs uncured thinset and weakens the install.
• Grouting movement joints: Causes cracks where surfaces meet. Caulk these instead.
• Poor layout: Leaves awkward slivers and unbalanced lines.

Floor vs Wall Tile Differences

Floor and wall installations have different demands. Floor tile must handle weight and foot traffic, so it needs a solid, deflection-free subfloor, a rated floor tile (not a delicate wall tile), and slip resistance, especially in a bathroom where water meets the floor. Use a tile with an appropriate slip rating for wet areas, and ensure the substrate does not flex, since movement cracks tile and grout. Wall tile carries less load but must stay bonded vertically while the thinset cures, so use the correct thinset and work from the bottom up, supporting tiles with ledger boards or spacers so they do not slide. Shower floors add the requirement of a slope toward the drain for proper drainage.

Choosing the Right Tile for a Bathroom

Material choice affects durability and upkeep. Porcelain is the workhorse for bathroom floors and walls thanks to its density and low water absorption. Ceramic is fine for walls and lighter-use floors. Natural stone like marble and travertine is beautiful but porous, requiring sealing and gentler cleaners. For floors, prioritize slip resistance, choosing a textured or matte finish over a slick polished one in wet zones. Smaller tiles and mosaics on a shower floor provide more grout lines for traction and conform to the slope. Always confirm a tile is rated for floor use before putting it underfoot.

Budgeting for the Project

Costs vary widely with tile choice, bathroom size, and whether you DIY or hire out. Beyond the tile itself, budget for thinset, grout, backer board, waterproofing membrane, sealer, and tools or tool rental. Buy extra tile, around 10 to 15 percent, for cuts and future repairs. Labor is the largest variable when hiring a pro and depends heavily on the complexity of the layout and any shower work. Because tearing out a failed bathroom tile job is costly, spending a bit more on quality waterproofing materials and, where needed, professional labor is money well spent.

When to Hire a Professional

DIY tile installation can save significant labor cost, and a confident homeowner can tackle a simple floor or a basic backsplash. But showers, tub surrounds, and large wet areas demand precise waterproofing, slope for drainage, and experience with membranes and niches. If the project involves a shower pan, complex layout, expensive natural stone, or any doubt about waterproofing, hiring an experienced tile installer is wise. A failed bathroom tile job is expensive to tear out and redo, so the cost of a pro often pays for itself in peace of mind and durability.

Final Thoughts

Great bathroom tile installation is mostly about preparation: a flat, properly waterproofed substrate, a well-planned layout, the right thinset and grout, and patience between steps. Get the hidden layers right and the visible tile will reward you with decades of clean, watertight service. Know your limits, especially around showers, and bring in a professional when the waterproofing or layout exceeds your comfort level. Done correctly, a tiled bathroom is one of the most durable and beautiful upgrades in any home.
