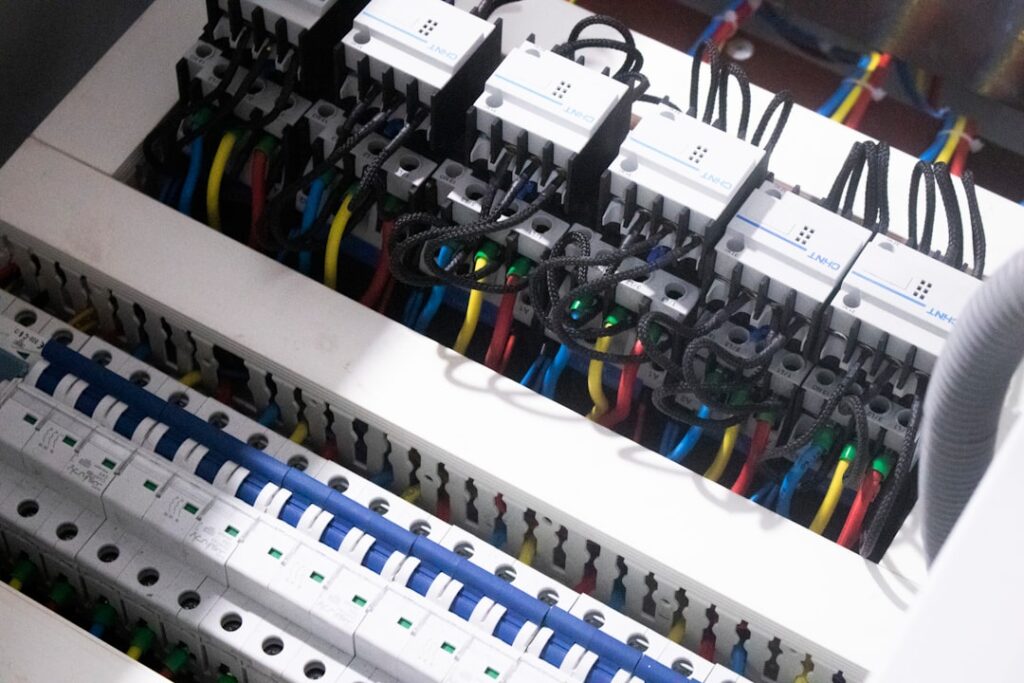

Using the wrong wire size is not just a code violation. It is a fire hazard that kills hundreds of people in the US each year. An electrical wire size chart matches wire gauge to the amperage and distance of each circuit, ensuring the conductor can handle the electrical load without overheating. Whether you are wiring a new outlet, running a circuit to a garage workshop, or planning a panel upgrade, this guide translates the National Electrical Code (NEC) requirements into plain language.
Understanding AWG Wire Gauge
The American Wire Gauge (AWG) system assigns a number to each wire size, and the numbers work backward from what you might expect. Smaller numbers mean thicker wire. A 14 AWG wire is thinner than a 10 AWG wire. The gauge determines how much current (amperage) the wire can safely carry without exceeding its temperature rating.
Most residential wiring uses copper conductors rated at 60 degrees C (140 degrees F) or 75 degrees C (167 degrees F). Aluminum wire is less common in modern homes but still used for large feeder circuits and service entrance cables because it costs significantly less per foot than copper at equivalent ampacity.
Residential Wire Size Chart (Copper)
This chart covers the most common residential applications using copper wire at the standard 60 degrees C rating per NEC Table 310.16:
- 14 AWG: 15-amp circuits. Used for general lighting and bedroom outlets. Standard Romex designation: 14/2 NM-B.
- 12 AWG: 20-amp circuits. Required for kitchen countertop outlets, bathrooms, laundry rooms, and garage receptacles. Standard Romex: 12/2 NM-B.
- 10 AWG: 30-amp circuits. Used for electric dryers, window air conditioners rated over 20 amps, and some water heaters. Standard Romex: 10/2 or 10/3 NM-B.
- 8 AWG: 40-amp circuits. Suitable for electric ranges and cooktops on shorter runs, and some large workshop equipment.
- 6 AWG: 50-55 amp circuits. Common for electric ranges, ovens, and large hot tubs requiring a 50-amp dedicated circuit.
- 4 AWG: 70-amp circuits. Used for sub-panels, large central air conditioning systems, and EV charger installations.
- 2 AWG: 95-amp circuits. Sub-panel feeders and heavy commercial equipment.
- 1/0 (one-ought) AWG: 150-amp service. Common for 150-amp residential service entrance.
- 2/0 AWG: 175-amp service. Used for 200-amp residential service when the run length is short.
- 4/0 AWG: 230-amp service. Standard for 200-amp residential main service entrance cables on longer runs.
Voltage Drop and Long Runs
Wire size charts assume relatively short circuit lengths, typically under 100 feet. On longer runs, voltage drop becomes a real concern. The NEC recommends keeping voltage drop below 3% on any branch circuit and below 5% total from the panel to the farthest outlet.
For a 120V, 20-amp circuit, the maximum recommended run with 12 AWG copper is about 85 feet. Beyond that, you need to upsize to 10 AWG to maintain adequate voltage at the load. For a 240V, 30-amp dryer circuit, 10 AWG works up to about 115 feet before requiring an upgrade to 8 AWG. Online voltage drop calculators from Southwire and other manufacturers make these calculations quick and accurate.
Common Home Circuits and Their Wire Requirements
- Bedroom and living room outlets: 14/2 NM-B on a 15-amp breaker. Most codes allow up to 8-10 outlets per circuit.
- Kitchen countertop outlets: Two dedicated 20-amp circuits using 12/2 NM-B, per NEC 210.52(B). These must be GFCI-protected.
- Bathroom outlets: Dedicated 20-amp circuit, 12/2 NM-B, GFCI-protected at the first outlet or at the breaker.
- Electric clothes dryer: 30-amp dedicated circuit, 10/3 NM-B (for a 4-wire connection including neutral and ground).
- Electric range/oven: 40 or 50-amp dedicated circuit, 8/3 or 6/3 NM-B depending on the appliance rating.
- Central air conditioner: Varies by unit. A 3-ton AC typically requires a 30-amp circuit with 10/2 cable. Check the unit nameplate for minimum circuit ampacity.
- Electric water heater: 30-amp dedicated circuit, 10/2 NM-B. Most residential tank heaters draw 4,500 watts at 240V.
- Garage door opener: 15-amp circuit, 14/2 NM-B. A dedicated circuit is recommended but not always code-required.
Wire Types Explained
Beyond gauge size, the wire type matters for the installation environment:
- NM-B (Romex): Non-metallic sheathed cable used inside walls, ceilings, and attics of dry locations. The most common residential wire type.
- UF-B: Underground feeder cable with moisture-resistant insulation. Used for direct-burial outdoor circuits to sheds, garages, and landscape lighting.
- THHN/THWN: Individual insulated conductors pulled through metal or PVC conduit. Required in exposed locations, garages in some jurisdictions, and commercial applications.
- SE/SER: Service entrance cable connecting the meter to the main panel. Available in aluminum and copper.
Aluminum vs. Copper Wire
Copper is the default choice for branch circuits because it conducts electricity more efficiently and resists corrosion better. Aluminum costs 50-60% less than copper and is acceptable for larger feeder circuits (sub-panels, service entrance) where the cost savings become significant. When using aluminum, you must upsize by one to two gauge levels compared to copper for the same ampacity, and all connections require anti-oxidant compound and connectors rated for aluminum.
Safety and Code Compliance
Always pull permits for new electrical work and have it inspected. An electrical wire size chart provides guidance, but local codes may exceed NEC minimums. For instance, some jurisdictions require 12 AWG minimum on all circuits, eliminating 14 AWG even for 15-amp lighting circuits. Never downsize wire to save money. The cost difference between 14 AWG and 12 AWG Romex is roughly $20-$30 per 250-foot roll, a trivial amount compared to the safety margin gained.
