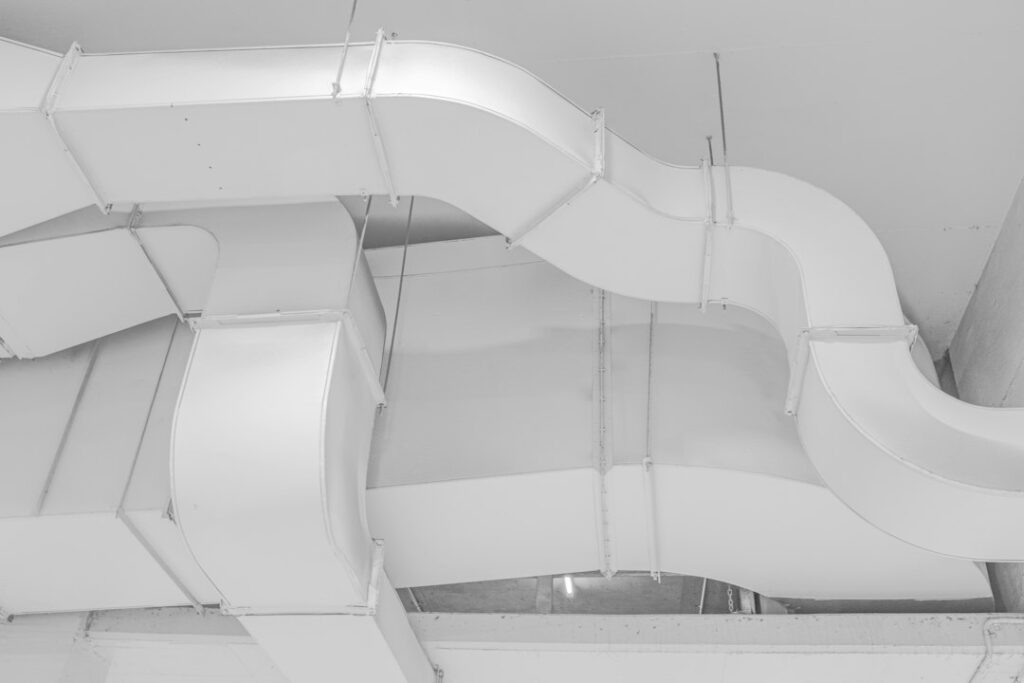

Return Air Duct: Sizing, Sealing and Common Problems

Most homeowners worry about supply vents, yet the return air duct is where many comfort problems actually start. If the blower cannot pull enough air back through the return side, it cannot push enough conditioned air out, no matter how many supply registers you open. An undersized or leaky return makes rooms stuffy, raises energy bills and can force the equipment to run hot.

The short answer for most houses: a return system should move roughly the same volume of air as the supply side, typically about 400 cubic feet per minute (CFM) per ton of cooling capacity, at low velocity so it stays quiet. That usually means more return area than people expect, airtight joints sealed with mastic or foil tape, and boots and panned joist cavities that are closed off from attics, crawlspaces and wall cavities.

We cover how the return side works, how to judge whether yours is big enough, how to seal it properly, and how to fix the whistling, rattling and dust problems that show up most often.

How a Return Air Duct Works

Your furnace or air handler has a blower that creates negative pressure on one side and positive pressure on the other. The supply ducts carry heated or cooled air out to the rooms. The return air duct network carries room air back to the blower, through the filter, and across the heat exchanger or coil so it can be conditioned again.

A typical return path has four parts:

• The grille on the wall, ceiling or floor, which is the part you see.
• The boot or box behind the grille, which transitions from the grille opening to the duct.
• The trunk or branch, which may be round or rectangular sheet metal, flexible duct, or a “panned” cavity between floor joists or wall studs.
• The return plenum at the equipment, often with the filter rack.

Because the return side runs under negative pressure, every leak pulls air in from wherever it can. In a basement that might be harmless. In an attic it means pulling in 130°F air in summer. In a crawlspace it means pulling in humidity, dust and odors. Near a combustion appliance it can be dangerous, which the combustion safety section explains.

Return Duct Sizing Basics

HVAC designers size returns using a room-by-room load calculation and a duct design method, so treat these numbers as rules of thumb for spotting a problem rather than a design substitute.

Airflow Targets

Most residential systems are set up to move about 350 to 450 CFM per ton. A 3-ton system therefore needs roughly 1,200 CFM returning to the blower. The return should handle that volume without excessive pressure drop. When technicians measure total external static pressure, an undersized return often shows up as a high reading on the return side, frequently more than half of the total.

Grille and Duct Area

For quiet operation, return grilles are commonly sized for a face velocity of around 300 to 400 feet per minute. In practical terms, many contractors plan about 200 to 250 square inches of free grille area per ton. Remember that a grille’s free area is less than its nominal size because of the louvers, often only 60 to 75 percent. A 20 by 25 inch filter grille might offer roughly 350 square inches of free area, enough for about 1.5 tons on its own.

Duct velocity in the return trunk is usually kept around 600 to 700 feet per minute for comfort and noise. As a rough reference, a single 16 inch round duct moves somewhere near 900 to 1,000 CFM at typical residential friction rates, while a 14 inch round handles closer to 650 to 750 CFM. Flexible duct moves less than smooth metal of the same diameter, especially if it sags or is compressed.

Signs Your Return Is Too Small

• A loud rushing or whistling sound at the return grille.
• The filter sucks inward or the filter door bows.
• Doors slam shut or are hard to open when the blower runs.
• Rooms with closed doors run hot in summer and cold in winter.
• The coil freezes in cooling mode or the furnace cycles on its high-limit switch.

Rooms that close off with a door should have a path back to the return, either a dedicated return, a jumper duct to the hallway, a transfer grille, or at least a generous undercut. Without one, the room pressurizes and supply air cannot get in.

Panned Joist Returns and Air Return Boots

Many older homes use “panned” returns: a sheet metal panel nailed across the bottom of two floor joists or between two wall studs creates a duct out of the framing cavity. This is cheap and common, but it is also one of the leakiest return designs in residential construction. The cavity may connect to the wall above, to the rim joist, or to holes drilled for wiring and plumbing, so the return pulls air from places you never intended.

Each air return boot deserves attention too. A boot is the sheet metal box that connects the grille opening to the duct or joist bay. Gaps where the boot meets the drywall or subfloor are leak points, and so are unsealed seams on the boot itself.

When sealing a panned return or HVAC return duct cavity:

1. Turn the system off at the thermostat and switch off the furnace service switch or breaker before working near the equipment.
2. Remove the pan if practical and look inside the cavity. Seal any holes into adjacent bays, walls or the rim area with fire-rated foam or caulk where required, or with sheet metal patches.
3. Seal wiring and pipe penetrations within the cavity.
4. Reinstall the pan with screws and seal all edges where the metal meets the wood with duct mastic.
5. Seal the boot seams and the gap between boot and drywall or subfloor with mastic or a flexible sealant.

Upgrading a panned return to a fully ducted metal return is often the better long-term fix, especially if the cavity runs through an unconditioned space.

Sealing Leaks the Right Way

Duct sealing is one of the highest-value DIY jobs on the return side, provided the ducts are accessible. The right materials matter. Standard cloth duct tape dries out and lets go within a few years, so skip it.

Tools and Materials

• Water-based duct mastic and a cheap brush or gloved hand for spreading.
• Fiberglass mesh tape to bridge gaps larger than about 1/4 inch before applying mastic.
• Foil HVAC duct tape rated for ductwork, for clean metal seams and access panels you may open later.
• Sheet metal screws and a nut driver.
• Zip ties or clamping bands for flexible duct connections.
• Gloves, eye protection and a dust mask, since old duct interiors are dirty.

Step by Step

1. Shut the system off. Turn the thermostat off and switch off the furnace or air handler at its service switch.
2. Find the leaks. Look for gaps at joints, elbows, takeoffs, the plenum connection and the filter rack. Disconnected flex is common in attics. Dust streaks on insulation often mark leaks.
3. Clean the surfaces. Wipe dust and oil off the metal so mastic or foil tape will bond.
4. Secure mechanically. Joints should be fastened with screws on metal connections, or with clamping bands on flex, before sealing. Sealant is not a fastener.
5. Seal. Brush mastic over seams in a layer about the thickness of a nickel, extending an inch or so beyond the joint. Use mesh tape across wider gaps. Use foil tape on the filter door frame and on panels you need to access, pressing it down firmly with a squeegee or plastic card.
6. Seal the plenum and cabinet. The return plenum connection to the furnace and the filter slot are major leak points. A tight filter door or a sealed filter grille helps a lot.
7. Let it cure. Most mastics need 24 hours or more before the system runs hard, so check the label.

If return ducts pass through an attic or crawlspace, insulate them after sealing. Insulation does not stop air leaks, which is why sealing comes first.

Fixing Noise and Whistling

Return noise usually comes from high velocity, a restriction, or something loose.

• Whistling at the grille: The grille is too small for the airflow, or the filter behind it is too restrictive. Try a lower-resistance filter of appropriate efficiency, add a second return grille, or upsize the grille and boot.
• Roaring at the furnace: The return plenum or the first section of trunk may be undersized. A larger return drop or an added return is the real fix.
• Rattling or ticking: Loose grille screws, a vibrating panned cover, or an expanding sheet metal panel. Tighten fasteners, add a screw at the center of a large flat panel, or apply a strip of foam gasket behind the grille.
• Booming or oil-canning: Large flat duct panels flex as the blower starts. Cross-breaking the metal or adding a stiffener helps.
• Whistling at the filter door: Air is leaking around the filter. Seal the slot with a fitted cover or foil tape.

Lining the first several feet of a return with acoustic duct liner or adding a lined elbow can quiet a return that sits close to a bedroom, but this is usually a contractor job.

Dust, Odors and Indoor Air Quality

A leaky return pulls in unfiltered air downstream of nothing, which is why you sometimes see a dirty streak around a return grille or dust settling quickly after cleaning. Crawlspace returns can bring in musty smells, and garage-adjacent leaks can pull in exhaust fumes. Sealing the return side and making sure the filter fits tightly in its rack often makes a visible difference in dust within a few weeks.

Return ductwork should never draw air from a garage. If yours does, have it corrected.

Combustion Safety and Carbon Monoxide

The return side of the system operates under negative pressure. If a return leak or an open return sits in the same room as a furnace, water heater or other fuel-burning appliance, it can depressurize that room and pull flue gases back down the vent instead of up and out. This is called backdrafting, and it can introduce carbon monoxide into the house.

• Never place a return grille in a furnace room or closet that holds a fuel-burning appliance unless the installation was designed and approved for it.
• Seal return leaks near the equipment, especially at the plenum and filter rack.
• Install carbon monoxide alarms on every level of the home and near sleeping areas, and test them monthly.
• Keep vents, flues and clearances as specified in the appliance manual and local code, and schedule an annual inspection of the venting.
• If a CO alarm sounds, get everyone outside and call emergency services or your gas utility.

General Cost Ranges

DIY sealing with mastic and foil HVAC duct tape typically costs well under $100 in materials for an average house. Professional duct sealing usually falls in the range of a few hundred dollars to around $2,000, depending on access and whether an aerosol sealing process is used. Adding a new return run with a grille commonly costs a few hundred dollars to over a thousand per run, and redesigning or enlarging the main return can run into the low thousands. A duct leakage test or static pressure diagnosis is often a modest fee and is worth it before spending larger sums.

When to Call a Licensed Professional

Simple sealing of accessible joints is a reasonable DIY task. Call a licensed HVAC contractor when you need to resize or add returns, change the return plenum, modify anything near a gas furnace or water heater, or suspect backdrafting. A pro can measure static pressure and airflow, perform a duct leakage test, and design changes based on a proper load calculation. Many jurisdictions require permits for duct alterations and equipment changes, and any electrical work on the air handler belongs with a qualified technician. If ducts run through an attic, consider professional help for anything beyond quick fixes, since heat and footing on joists make attic work risky.
