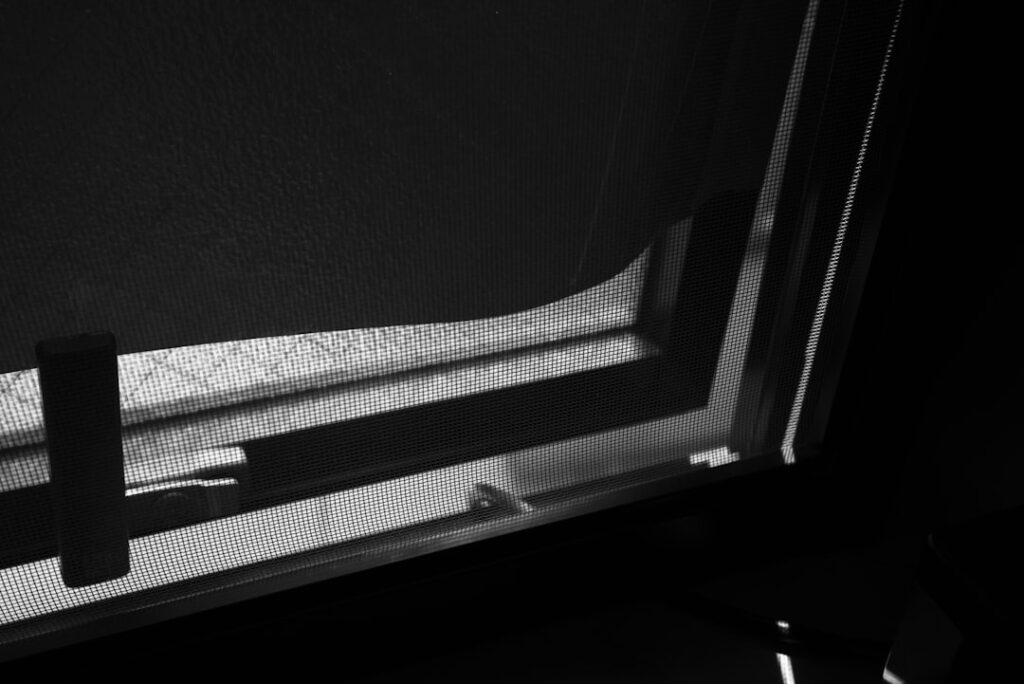

The mesh gets all the attention, but the humble rubber cord holding it in the frame decides whether your screen stays drum-tight or pops loose in the first thunderstorm. Window screen spline is the flexible vinyl cord that presses screening material into the groove around a screen frame, and it comes in at least seven diameters that all look interchangeable in the package. They are not. Spline that is one size too small lets the mesh pull free; one size too big will not seat, or it stretches the mesh unevenly and bows lightweight frames. Getting the size right — and knowing when old spline must be replaced rather than reused — is 90 percent of a professional-looking re-screen.
Part of our Windows & Doors guide — explore the full guide →
What Spline Actually Does
A screen frame has a channel, typically 1/8 to 3/16 inch wide, running around its inside perimeter. During screening, you lay the mesh over the frame, press it into the channel, and then force the spline in on top of it. Friction between the spline, the mesh, and the channel walls is the entire attachment system — there is no adhesive, no fasteners. That is why diameter matters so much: the spline must compress slightly as it enters the groove so it exerts constant outward pressure. Properly sized spline requires firm pressure with a spline roller to seat and cannot be pulled out by hand without a tool. If you can push it in with a thumb, it is too small for that channel.
Standard Spline Sizes and Where Each Is Used
Vinyl spline is sold by diameter in inches. The common sizes, from smallest to largest:
- 0.100 inch — small aluminum storm window screens and some older frames
- 0.125 inch (1/8″) — light-duty window screens, very common on older homes
- 0.140 inch — the most common size for modern residential window screens; the “universal” size in most repair kits
- 0.160 inch (5/32″) — sliding patio door screens and heavier window frames
- 0.175 inch — larger patio doors and porch screening systems
- 0.190 inch (3/16″) — heavy porch and pool enclosure framing
- 0.250 inch (1/4″) — commercial and pool cage applications
A 100-foot roll of any residential size costs $6 to $10, which covers roughly six to eight standard window screens. Buy the full roll rather than the 25-foot kit length; leftover spline keeps for decades in a drawer.
How to Measure the Spline Size You Need
Never guess from the chart alone — measure. Pry out an inch of the existing spline at a corner using an awl or small flathead screwdriver, cut it free, and measure the diameter with calipers or by pressing it against a ruler. Old spline shrinks as its plasticizers evaporate, so if the measurement falls between sizes, round up to the next diameter. No old spline to measure? Measure the channel width instead and select spline about 0.010 to 0.020 inch larger than the groove is wide, accounting for the mesh that must also fit. When in doubt, buy the two candidate sizes — you are risking $8 — and test-fit a corner before committing to the full perimeter.
One important exception: when upgrading to thicker material such as pet screen or solar screen, drop down one spline size from what the channel took with standard fiberglass. The heavier mesh occupies more of the groove, and the usual diameter will either refuse to seat or drag the mesh out of square as you force it.
Flat Spline and Foam-Core Variants
Not all spline is round. Flat spline — shaped like a small T or wedge — appears on some older aluminum frames and certain manufactured-home windows, where it presses into a narrow slot rather than a rounded groove. If your old spline comes out flat, replace it with flat; round spline will not lock into those channels. Foam-core spline, softer and more compressible than solid vinyl, shows up in some pool-enclosure and porch systems because it is easier to install over stiff mesh in long runs. For typical house windows, solid round vinyl is what you want: it holds tension better and survives more re-screens. Bulk spline also comes in gray and black; color is cosmetic, though black hides dirt on a screen you see edge-on from a porch.
Why You Should Not Reuse Old Spline
Reusing spline is the most common shortcut and the most common reason a fresh re-screen fails by fall. Vinyl hardens and shrinks with UV exposure and age. Ten-year-old spline that measures 0.130 inch was almost certainly 0.140 when installed, and its surface has lost the slight tackiness that grips the mesh. It also takes a “set” in its original shape, so it fights you at every corner. New spline costs about a dollar per window. The only time reuse makes sense is a same-day repair where you removed the spline carefully to fix one edge and the material is less than a couple of years old.
Re-Splining a Screen Step by Step
Lay the frame on a flat work surface and pry out the old spline, starting at a corner. Remove the old mesh, then cut new screening with about 1 inch of overhang per side. Starting mid-way along one long side, press the mesh into the channel with the convex wheel of a spline roller, then roll the spline in over it with the concave wheel, working toward each corner. At corners, do not cut the spline — push it into the corner with a screwdriver tip and continue rolling in one continuous piece, which locks the corners far better than four separate lengths. Do the opposite long side next, pulling the mesh hand-tight as you go, then the two short sides. Keep tension moderate: fiberglass mesh should be flat and firm, not stretched like a trampoline, or the frame rails will bow inward. Trim excess mesh with a sharp utility knife riding along the outer edge of the spline, blade angled away from the panel. Total time per window after your first one: about 15 minutes.
The Right Roller Technique
Tool technique deserves its own word, because the spline roller is misused constantly. Hold the handle at a low angle — around 30 to 45 degrees to the frame — and make several light passes rather than one crushing pass. Driving the wheel straight down with full weight stretches the spline like taffy; stretched spline later contracts, pulling back from the corners and leaving quarter-inch gaps that unzip the whole side. Let the concave wheel walk the cord in gradually, guiding the spline ahead of the wheel with your free thumb so it feeds without twisting. On aluminum frames, listen as you work: a faint, even squeak means the spline is seating; silence usually means it is riding on top of the channel lip and will pop out behind you. Steel-wheel rollers with a hardwood handle (Prime-Line’s P 7505 pattern, about $6) outlast and outperform the plastic freebies bundled in kits — the plastic wheels flex under load and wander off the channel line, which is where those mystery mesh cuts along the groove edge come from.
Troubleshooting Common Spline Problems
Spline that pops back out of the channel as you roll usually means the diameter is too large for the mesh-plus-groove combination — step down one size. Mesh that wrinkles diagonally means you rolled adjacent sides in the wrong order or pulled tension unevenly; pull the spline on the wrinkled side and re-roll it while smoothing the mesh toward the corner. Corners that lift are almost always cut spline rather than continuous spline, or brittle cord that cracked at the bend. And a screen that was tight in spring but rattles by August points to undersized or aged spline slowly walking out of the groove — the $8 roll of correctly sized cord fixes what no amount of re-stretching will. Small part, cheap fix, and the entire difference between a screen that holds and one that does not.
