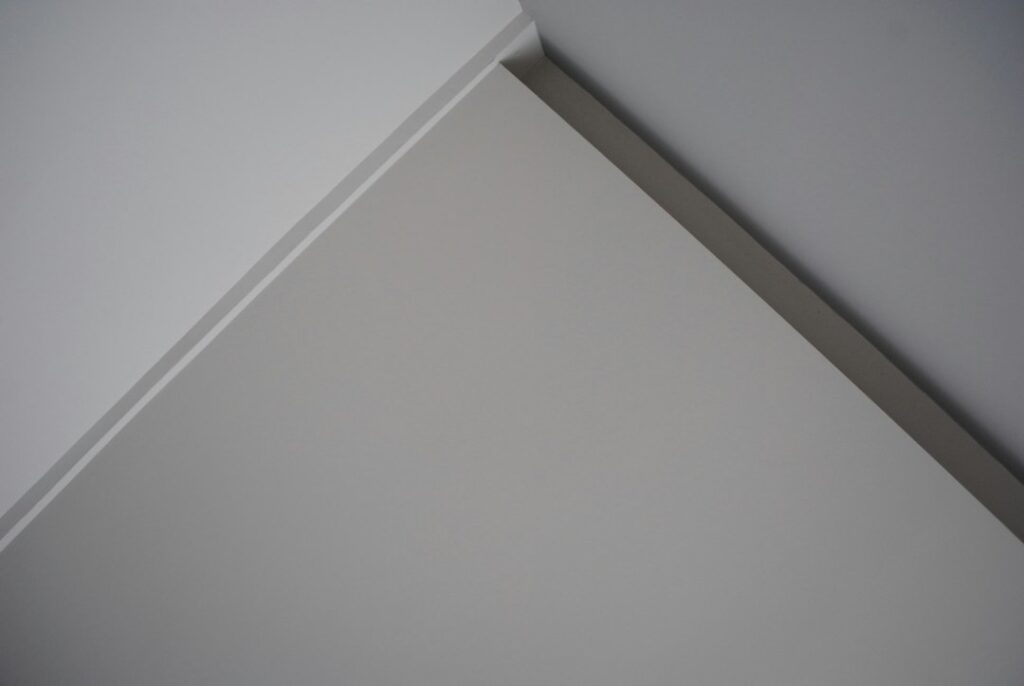

Flexible Crown Molding for Curved and Arched Walls

Try to bend standard pine or MDF crown around a curved wall and it will either snap or leave a row of ugly flat facets. Flexible crown molding exists for exactly this situation. Cast from a dense, rubbery polymer resin, it bends to follow a radius wall, a turret, a bowed bay or an arched opening while keeping the same profile as the straight runs around it.

The material installs much like ordinary trim, with adhesive and a few fasteners, but success depends on two things that rigid crown never asks of you: ordering the piece for your actual radius, and making clean joints where flexible and rigid lengths meet. Get those right and the curved section disappears into the rest of the room.

When Flexible Crown Molding Makes Sense

Flexible crown molding belongs anywhere the wall or ceiling line curves in plan. The most common spots are:

• Radius walls in entries, stairwells and dining rooms
• Round turrets or tower rooms, where the whole perimeter is a curve
• Bowed bay windows with a continuous curve rather than angled facets
• Curved soffits over kitchen islands or bars
• Arched openings and eyebrow windows, using flexible casing in the same family

It is not the right tool for a vaulted or cathedral ceiling where the walls are straight but the ceiling slopes. That situation calls for rigid crown with compound miters or transition blocks, because the problem is angle, not curvature. Angled crown molding work on sloped ceilings is a separate technique altogether.

Flexible material also handles some forms of wavy, out-of-true plaster walls better than stiff wood, though it costs several times more per foot. Most installers use it only where a true curve demands it.

How Flexible Molding Is Made

Most flexible wall molding is cast urethane or polyester resin formulated to stay pliable at room temperature. Manufacturers copy the profiles of popular wood and polyurethane crowns, so you can match a flexible section to the stock crown used elsewhere. The material takes paint well, accepts stain-grade finishes in some lines, cuts with a fine-tooth saw and does not rot or split.

Pieces are flexible enough for gentle radii straight from the box. For tighter curves, manufacturers either pre-form the molding to a specified radius at the factory or recommend warming it to make it more pliable. A typical stock length is 8 to 12 feet.

Measuring the Radius and Ordering

Ordering by radius is the step most people get wrong. Crown sits at an angle between the wall and ceiling, so the top edge and the bottom edge follow two different curves. For a convex (outside) curve, the ceiling edge is longer than the wall edge; for a concave (inside) curve, it is shorter.

Finding the radius of a curved wall

1. Stretch a straight board or chalk line between two points on the curve, a chord, and measure its length. Call that C.
2. From the middle of the chord, measure straight out to the wall surface. Call that height H.
3. Radius equals (C squared divided by 8H) plus (H divided by 2).

For example, a 72-inch chord with a 6-inch rise gives a radius of (5,184 ÷ 48) + 3, which is 111 inches. Take measurements at the height where the crown will sit, because walls are rarely perfectly plumb.

What to tell the supplier

• Profile name or number, matching your rigid crown
• Radius at the wall line, inside or outside curve
• Total arc length plus 10 to 15 percent for trimming
• Whether the curve is concave or convex

Many suppliers ask for a cardboard template of the curve. Hold a sheet of cardboard against the wall at crown height, trace the wall line, cut it out and send it or a photo with dimensions. A template eliminates guesswork on irregular curves.

Gentle curves with a radius larger than about 4 feet usually take stock flexible molding with no pre-forming. Tighter radii often require a factory-formed piece, and turrets under roughly 3 feet across almost always do.

Tools and Materials

• Flexible crown molding in the matching profile
• Rigid crown for the straight runs
• Construction adhesive or the urethane adhesive the manufacturer specifies
• Paintable acrylic caulk and wood filler
• Fine-tooth miter saw or a sharp handsaw and miter box
• 18-gauge brad nailer and 2-inch brads, or trim screws
• Painter’s tape, a stud finder, a level and a tape measure
• Stable step ladder or a rolling scaffold
• Hair dryer or a warm room for conditioning the molding

Conditioning the Molding Before Install

Cold flexible molding is stiff and fights the curve. Store it flat in the room for at least 24 hours at 70°F or above. On a tight radius, some installers lay the piece in a warm room or warm it gently with a hair dryer, moving constantly, until it relaxes. Never use a heat gun at close range; overheating can soften the surface and distort the profile.

Lay the piece on the floor beneath the curve and bend it into rough shape before lifting it. Getting the bend started at floor level is far easier than wrestling an 8-foot length on a ladder.

Step-by-Step Installation

1. Mark a layout line. Hold a scrap of crown in position and mark the bottom edge on the wall at several points around the curve. Connect the marks with a light pencil line. This keeps the curved section at the same height as adjacent straight runs.
2. Install the rigid runs first. Fit and fasten the straight crown up to where the curve begins, leaving the end square or cut to the joint you plan to use.
3. Dry-fit the flexible piece. With a helper, lift the flexible molding into place against the layout line and check how it sits. Mark the cut points where it meets the rigid runs.
4. Cut joints. Where flexible meets rigid on a continuous wall, a simple butt joint or a scarf cut at 45 degrees through the thickness hides best. At corners, use normal inside or outside miters.
5. Apply adhesive. Run continuous beads on the two flat bearing surfaces, the one against the wall and the one against the ceiling.
6. Set and fasten. Press the molding onto the layout line starting at one end and working along the curve. Fasten every 12 to 16 inches into framing where possible. Use painter’s tape or temporary braces to hold it while the adhesive grabs.
7. Glue the joints. Apply adhesive to the mating ends at each joint and press them tight. Wipe squeeze-out immediately.
8. Fill and finish. After the adhesive cures, usually 24 hours, fill nail holes, caulk the top and bottom edges, sand joints flush and paint.

Joining Flexible and Rigid Crown

The transition is where a curved section either blends in or announces itself. A few rules help.

Place joints where the wall changes from straight to curved, not partway along the curve. Extend the flexible piece an inch or two onto the straight wall so the rigid trim does not have to start exactly at the tangent point. Make sure both profiles come from the same family; a 1/16-inch difference in projection shows as a shadow line. Sand the joint lightly after the adhesive sets, then skim it with filler if the profiles need blending.

Mixing materials also means mixing paint behavior. Prime the rigid wood or MDF and the flexible piece with a bonding primer before topcoating so the sheen matches across the joint.

Ladder and Scaffold Safety

Crown work keeps your arms overhead and your attention on the ceiling, a combination that causes falls. Use a step ladder rated for your weight plus tools, fully opened with spreaders locked, and never stand on the top cap or the step below it. On a long curve, move the ladder rather than leaning out. A low rolling scaffold with locking casters is much safer for turrets and stairwells. Two people make long flexible pieces manageable and prevent strain. In a two-story stairwell or foyer, hire a pro with staging rather than improvising a plank across ladders.

Troubleshooting Common Problems

Molding springs back off the wall. The radius is tighter than the stock piece can comfortably follow, or the material is cold. Warm it, add temporary bracing and more fasteners until the adhesive cures, or reorder a pre-formed piece.

Gaps along the ceiling line. Curved ceilings and walls rarely meet perfectly. Caulk gaps up to 1/4 inch. Larger gaps suggest the crown is twisted or the layout line drifted.

Visible joint after paint. Joints show when they are not sanded flush or the profiles are mismatched. Sand, skim with filler and repaint.

Wavy appearance on the curve. The fastener spacing was too wide, letting the molding relax between points. Add brads closer together and reattach any loose sections with adhesive.

Cost Expectations

Flexible molding costs several times as much as rigid crown, often $8 to $25 per linear foot for stock pieces and more for factory-formed tight radii or large profiles. Rigid crown in the same profile might run $2 to $8 per foot. Because most rooms have only a short curved section, the total material bump is usually modest. Professional installation for crown typically runs $6 to $15 per linear foot on straight runs and more on curves because of the layout and fitting time.

When to Call a Pro

Hire a finish carpenter for tight turrets, very large profiles, two-story curved walls or any job that needs scaffolding. A pro is also worth it if your rigid crown is a custom or discontinued profile, because matching a flexible piece may require a custom casting from a sample.
