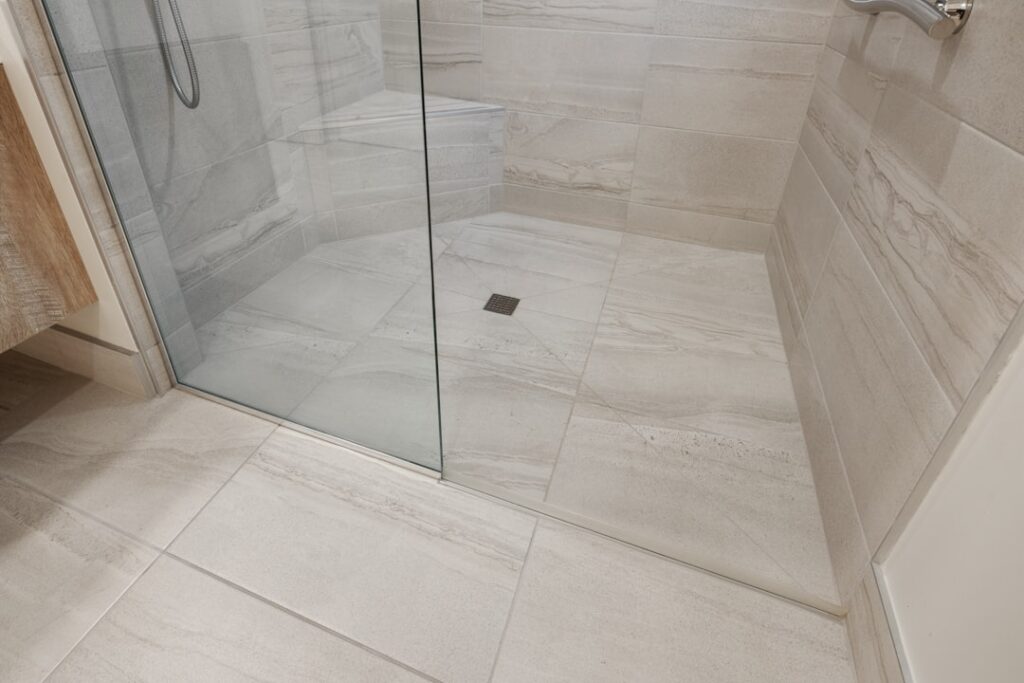

Shower Pan Installation Mistakes to Avoid Before You Tile

A leaking shower pan rarely announces itself. It works quietly, wicking water into the subfloor for months until a soft spot appears in the hallway or a stain blooms on the ceiling below. By then you are looking at a demolition, not a repair. Most of the shower pan installation mistakes I get called out to fix are avoidable, and they trace back to a handful of shortcuts made during the rough-in. Get the pan right and everything above it — the tile, the grout, the glass — has a fighting chance. Get it wrong and no amount of premium tile saves you.

Mistake 1: Skipping or Botching the Slope

Water only drains if the floor moves it toward the drain, and code calls for roughly 1/4 inch of fall per foot from the walls to the drain. The most common failure is a flat or reverse-sloped pan that lets water pool in low spots. Standing water finds the smallest weakness in the waterproofing and stalls there, so a dead-flat corner becomes a permanent damp zone that breeds mildew and eventually delaminates the mortar bed.

When you build a mortar bed by hand, screed the slope carefully and check it with a level in multiple directions before it sets. If you use a preformed sloped pan or foam tray, verify it is not rocking or bridging a low subfloor — shim and embed it in thinset so the entire underside is supported. A pan that flexes will crack.

Mistake 2: Getting the Pre-Slope Wrong on a Traditional Pan

Traditional mud pans use two mortar layers with a waterproof membrane sandwiched between them, and the layer people forget is the pre-slope — the sloped mortar bed under the liner. Skip it and the liner sits flat, so any water that penetrates the top mortar bed collects on a level membrane instead of running to the weep holes. That trapped water saturates the mortar, and the pan never truly dries.

The correct sequence is pre-slope first, then the liner following that slope, then the top mortar bed. It is more work and one of the most skipped steps by inexperienced installers. If you are not building a two-layer mud pan, a modern integrated system like Schluter-KERDI or a foam tray sidesteps this issue entirely by waterproofing at the surface.

Mistake 3: Puncturing or Poorly Sealing the Liner

A vinyl or CPE liner is only waterproof if it stays intact. Driving a nail or screw through the liner within 8 inches of the finished pan height is a classic error — fasteners belong only in the top portion of the curb and walls, above the flood line. Every penetration below that is a future leak.

Corners are the other weak point. Folded liner corners must be dressed neatly and, where required, sealed with the manufacturer’s dam corners and adhesive rather than just tucked. And the liner has to clamp properly into the drain assembly with all bolts snug and the rubber gasket seated. A loose drain clamp or a liner cut too short at the drain is a guaranteed slow leak that no tile can cover.

Mistake 4: Blocking or Ignoring the Weep Holes

Clamping-drain assemblies have small weep holes at the base that let water which passes through the mortar bed escape into the drain. Cover those holes with dense mortar during the top-bed pour and you seal water inside the pan permanently. Over months, that saturated bed grows mold and can even cause efflorescence to bleed through grout lines.

Protect the weep holes by setting a ring of coarse gravel or a few small stones around the drain base before packing the mortar, keeping the passages open. It is a two-minute step that prevents one of the most misdiagnosed shower problems — a shower that smells musty and stays damp no matter how well you ventilate.

Mistake 5: Failing the Flood Test

Here is the step that separates careful installers from hopeful ones: the flood test. Before a single tile goes down, plug the drain, fill the pan with water to just below the curb, mark the level, and leave it for 24 hours. If the line drops, you have a leak to find now, while the wall is open and the fix is cheap.

Skipping the flood test is the umbrella mistake behind most catastrophic pan failures, because it is your one chance to catch a problem before tile buries it. I have never regretted a flood test, and I have torn out plenty of showers where nobody bothered. Twenty-four hours of patience is nothing against a full bathroom rebuild.

Mistake 6: Undersizing or Mis-Setting the Curb

The curb keeps water in, and it needs the same waterproofing continuity as the pan floor. A common shower pan installation mistake is running the liner up and over the curb without proper support, or building a curb from material that wicks water, like untreated wood exposed to the wet side. The liner must wrap the curb fully, and the curb should be tall enough — generally at least 2 inches above the finished drain — so water never crests it.

On a curbless or barrier-free shower, the stakes climb because there is no curb to catch overflow. Those designs demand a recessed subfloor, a linear or offset drain, and flawless slope across a larger wet area. If you are attempting curbless without experience, this is the point to bring in a pro.

Mistake 7: Rushing the Waterproofing and Cure Times

Modern surface membranes — liquid-applied products and sheet systems — work beautifully, but only when applied to the manufacturer’s spec. Too thin a coat of liquid membrane leaves pinholes; too few coats leaves gaps at the corners and drain. Sheet membranes fail when the seams and inside corners are not overlapped and bonded correctly.

Cure time matters just as much. Thinset under a pan and membrane over it both need time to set before the next step or the next water exposure. Flood-testing a liquid membrane before it has fully cured can ruin the coating. Read the data sheet, respect the temperatures — most products want the space above 40°F to 50°F — and do not let a schedule push you into tiling over a membrane that is still green.

A Quick Pre-Tile Checklist

• Slope confirmed at about 1/4 inch per foot toward the drain, in every direction
• Pre-slope present under the liner on traditional mud pans
• No fasteners penetrating the liner below the flood line
• Drain clamp bolts snug, gasket seated, liner cut clean at the drain
• Weep holes protected with gravel and left open
• Curb fully wrapped and at least 2 inches above the drain
• Membrane applied to full thickness with sealed corners and cured
• 24-hour flood test passed with no level drop

Mistake 8: Choosing the Wrong Pan for the Job

Not every shower calls for a hand-built mud pan, and forcing the wrong system is its own mistake. A preformed acrylic or fiberglass pan is a reliable, leak-resistant choice for a standard alcove and takes far less skill to set correctly than a mortar bed. A foam tray with an integrated surface membrane splits the difference, giving you custom sizing and modern waterproofing without the two-layer mud pan learning curve. The traditional mud pan still has its place for large, custom, or oddly shaped showers, but attempting one for the first time on your own finished bathroom is how many of the errors above happen.

Match the pan to your skill level and the shower’s complexity. If your subfloor is out of level, your layout is irregular, or you have never built a slope by hand, a quality prefab or foam system removes several of the most common failure points before you even start. Spending a little more on a forgiving system beats saving money on a mud pan you are not equipped to build correctly.

The Bottom Line

Nearly every one of these shower pan installation mistakes is invisible once the tile is down, which is exactly why they are so costly — you cannot inspect your way out of a buried error. Slope it correctly, keep the liner and weep holes intact, wrap the curb, waterproof to spec, and above all, run the flood test before you tile. Whether you are building a traditional mud pan or setting a modern foam tray, the discipline is the same: treat the pan as the one layer that must never leak, because everything else in the shower is only decoration sitting on top of it.
