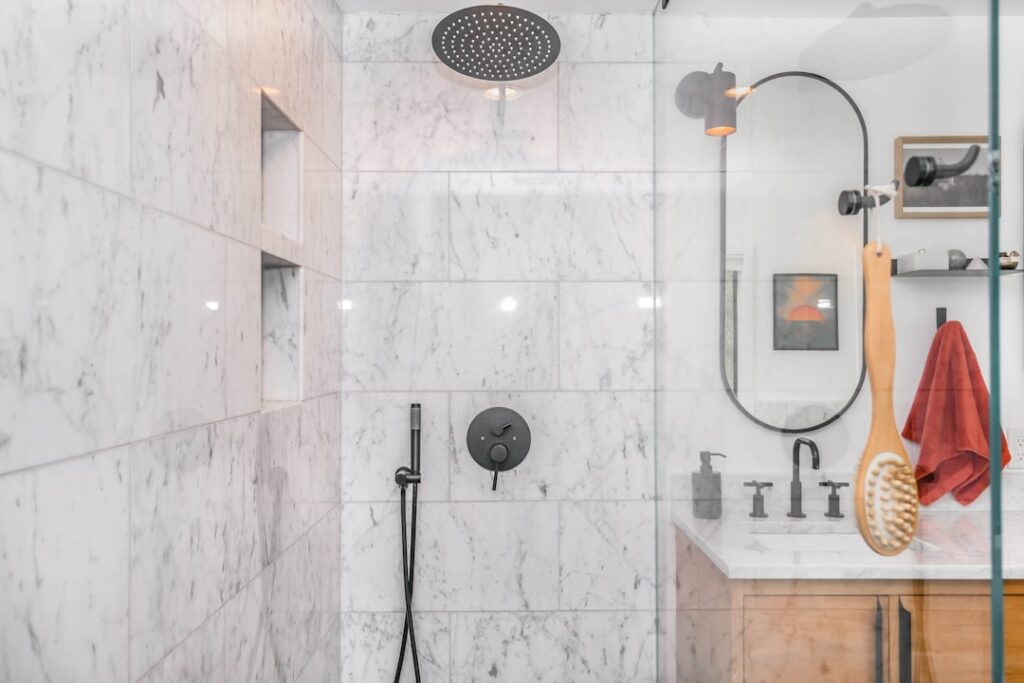

Single Handle Shower Valve: How It Works

Grab the control in almost any shower built since 1990 and you are holding a single handle shower valve — one lever or knob that governs both temperature and, on some designs, volume, replacing the separate hot and cold handles your grandparents balanced by feel. The dominance is no accident: a single handle shower valve is safer, simpler to use, and in most jurisdictions the only configuration code allows in new work. Understanding how the mechanism actually mixes water explains everything else about it — why it protects against scalding, why some versions cost $60 and others $600, and which type belongs in your wall. Let’s open one up conceptually.

Part of our Bathroom Remodeling & Flooring guide — explore the full guide →

The Core Idea: One Motion, Two Water Lines

Behind the trim plate, hot and cold supply lines enter a brass valve body. Inside sits a cartridge — the replaceable heart of the valve — with ports that align variably with the hot and cold inlets as the handle moves. Rotate the handle and the cartridge proportions the two flows: full cold at one end of travel, full hot at the other, blended in between. The mixed stream exits through the top port to the showerhead (and a bottom port to the tub spout, where fitted). The handle is doing with one motion what two-handle valves need constant fiddling to achieve — holding a chosen hot-to-cold ratio.

That ratio-holding is the safety story. Old two-handle compression valves hold nothing: when a toilet flush steals cold-line pressure, the hot ratio spikes instantly and someone gets burned. Single-handle valve standards (ASSE 1016) require the valve itself to compensate.

Type 1: Pressure-Balancing Valves

The workhorse of American showers. Inside a pressure-balance cartridge, a small spool or diaphragm floats between the hot and cold streams, shuttling instantly toward whichever side loses pressure and throttling the other to match. Flush a toilet mid-shower and outlet temperature holds within about 2 to 3 degrees Fahrenheit — you feel a momentary pressure dip, not a scald. The handle sets a temperature position, and a rotational limit stop (set at install) caps how far toward hot it can travel, typically tuned so maximum output is 110 to 120 degrees.

• Cost: $60 to $180 for rough-in valve plus mainstream trim
• Control: one handle sets temperature; flow is full-on (some add a separate volume control)
• Limitation: it balances ratios, not absolute temperature — if your water heater setpoint changes seasonally, your handle position drifts too
• Meets ASSE 1016 P; standard in production housing

Type 2: Thermostatic Valves

Where pressure-balance valves hold a ratio, a thermostatic cartridge holds an actual temperature. A wax-filled thermostat element inside expands and contracts with outlet temperature, continuously repositioning the mixing sleeve to hold the dialed setting — commonly marked in degrees on the trim — regardless of pressure or supply-temperature swings. Most thermostatic trims use two controls (temperature dial plus separate volume/diverter), though single-lever thermostatic designs exist.

• Cost: $250 to $700-plus with trim; the premium tier
• Precision: holds within about 1 degree of the setpoint; anti-scald stop typically at 100 to 104 degrees with an override button
• Best for: households with elderly or very young bathers, custom multi-outlet showers, and anyone running body sprays or rain heads that need independent volume control
• Meets ASSE 1016 T; supports higher flow rates for multi-head systems

Cartridge Designs You’ll Meet at Repair Time

Brands implement the mixing job differently, and the cartridge style determines your future repair parts. Moen’s iconic 1222 and 1225 cartridges slide in a cylinder — pull one pin-style clip and the cartridge comes out the front. Delta’s MultiChoice bodies accept interchangeable pressure-balance or thermostatic cartridges in the same rough-in, a genuinely clever upgrade path; older Deltas used the ball-and-springs assembly with small seats and springs that DIYers know well. Kohler, Pfister, and American Standard each run proprietary ceramic-disc or sleeve cartridges. Ceramic disc designs — two polished ceramic plates shearing across port openings — have become the durability benchmark, routinely running 15-plus years without a drip. Whatever the brand, the serviceable logic is the same: shut off water, pull the trim, extract the cartridge, and swap a $20-to-$60 part instead of touching the soldered valve body.

Rough-In Basics: What’s Behind the Trim

A single-handle valve installs as two separable purchases: the rough-in valve body that gets soldered or press-fit into the wall (centered at 38 to 45 inches off the floor for showers, around 28 for tub/showers), and the trim kit that dresses it. Three practical notes from the field. Buy the rough-in with integral service stops — small screwdriver-operated shutoffs in the valve body that let you service the cartridge without killing the house main; the $15 upcharge repays itself the first repair. Check connection type against your supply pipe: bodies come in half-inch sweat, PEX, CPVC, and threaded versions. And set the plaster guard depth carefully against the finished wall plane, because a valve buried too deep is the single most common trim-installation failure, curable only with extension kits or wall surgery.

Why Choose Single-Handle — and When Not To

Choose it for safety (code effectively decides this for you in renovations that touch the valve), for one-handed operation that works with soapy eyes and works for kids, for cleaner tile penetration — one trim plate instead of three — and for repairability via drop-in cartridges. The honest drawbacks: flow and temperature are coupled on basic pressure-balance models, so you cannot run a trickle at full-hot; cartridge replacements bind you to the brand’s parts ecosystem forever, which argues for staying with Delta, Moen, Kohler, or another maker whose cartridges will still be on the shelf in 2045; and premium thermostatic setups cost real money. The only scenario where I still install two-handle style is period-accurate restoration with an exposed European-style thermostatic bar — which is, under the skin, a thermostatic mixing valve anyway.

Symptoms Decoded: What the Valve Is Telling You

• Drip from the head with the valve off: worn cartridge seals — replace the cartridge
• Sudden loss of hot or wild temperature swings: stuck pressure-balance spool, often after supply work stirred debris; cartridge swap or clean
• Handle stiff or gritty: mineral-bound cartridge; pull it, soak in vinegar, grease with silicone, or replace
• Cannot get full hot: rotational limit stop set conservatively — adjust it per the manual before condemning parts
• Water temperature drifts across seasons: normal for pressure-balance designs as incoming cold changes; recalibrate the limit stop spring and fall

Setting the Limit Stop: The Five-Minute Job Everyone Skips

Every pressure-balance valve ships with its rotational limit stop — a toothed ring or adjustable cam behind the handle — at a factory default that rarely matches your water heater. Calibrating it is the cheapest safety upgrade in plumbing. Pull the handle, run the valve to full hot for two minutes, and measure the stream with a cooking thermometer at the head. Reposition the stop ring one tooth at a time until maximum output reads 110 to 115 degrees for a family bath (120 is the code ceiling in most jurisdictions), then reinstall the handle. Each tooth typically shifts the maximum 4 to 6 degrees. Recheck twice a year: incoming cold water in January can run 30 degrees below its July temperature in northern states, which drags your calibrated maximum down with it. Households with a tankless heater should calibrate against the unit’s setpoint instead, since tankless output holds steady year-round.

1. Remove handle; locate the toothed limit-stop ring
2. Measure actual full-hot output with a thermometer
3. Re-index the ring toward or away from hot, one tooth per pass
4. Target 110-115 degrees max; verify and reassemble

The Bottom Line

A single-handle valve is a small mixing machine: pressure-balance versions hold your hot-to-cold ratio steady through pressure upsets for well under $200, and thermostatic versions hold an exact temperature for a premium. For most bathrooms, a name-brand pressure-balance valve with service stops, its limit stop actually adjusted at install, is the right spec — safe, cheap to service, and good for decades. Put the extra money into a thermostatic body only when precision, multi-head plumbing, or vulnerable bathers justify it. Either way, keep the cartridge model number written inside the vanity door; twenty years from now, that note is the repair.
